Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling.
The BQ27426YZFR has a built-in calibration process that can be initiated through the I2C interface. The device comes with a default calibration, but it's recommended to perform a custom calibration for optimal accuracy. Refer to the application note SLUA533 for detailed calibration procedures.
The BQ27426YZFR can handle charging currents up to 5A, but it's essential to ensure the device is properly thermally managed and the PCB is designed to handle the high currents.
While the BQ27426YZFR is optimized for lithium-ion batteries, it can be used with other battery chemistries. However, the accuracy of the fuel gauge may be affected, and custom calibration may be required. Consult with Texas Instruments' support team for guidance on using the device with non-standard battery chemistries.
The BQ27426YZFR has built-in protection features, such as overcharge and over-discharge protection. To implement battery protection, connect the device to a protection IC, such as the TPS65090, and configure the protection thresholds through the I2C interface.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27426YZFR Overview

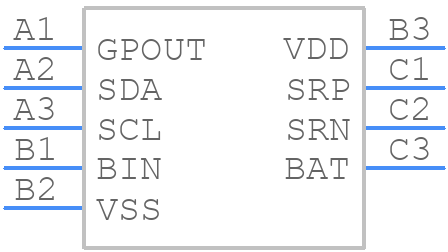

Use the download button to access the BQ27426YZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ274,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
