BQ27426YZFT - Texas Instruments

Description: Single cell System-Side Battery Fuel (Gas) Gauge w/Pre-programmed Chemistry Profile

Download BQ27426YZFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

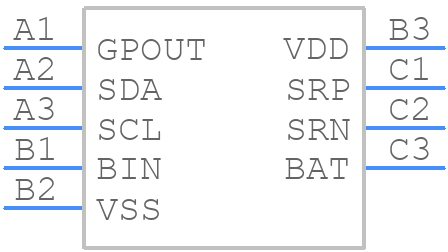

BQ27426YZFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ27426YZFT - Texas Instruments PCB footprint - BGA - BGA - YZF0009=
click to zoom
3D Models
BQ27426YZFT - Texas Instruments - 3D model - BGA - YZF0009=
click to zoom

BQ27426YZFT Details

  • Manufacturer Part Number:

    BQ27426YZFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.62 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.45 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.58 mm

BQ27426YZFT Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ27426YZFT involves placing the device close to the battery, using a solid ground plane, and keeping the sense lines short and away from noise sources. TI provides a recommended layout in the datasheet and application notes.
  • Calibration involves programming the device with the correct battery characteristics, such as capacity, chemistry, and voltage ranges. TI provides a calibration guide and software tools to help with this process.
  • Temperature affects the battery's internal resistance and capacity, which can impact the accuracy of the fuel gauge. The BQ27426YZFT has built-in temperature compensation, but it's still important to consider temperature effects in the system design.
  • The BQ27426YZFT has a low-power sleep mode to conserve energy. To wake up the device, use the dedicated wake-up pin or a timer event. Ensure that your system design takes into account the wake-up timing and power management requirements.
  • When using the BQ27426YZFT in a multi-cell battery pack, consider the total capacity, voltage, and temperature of the pack. You may need to use multiple devices or a different configuration to accurately monitor the entire pack.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ27426YZFT Overview

Use the download button to access the BQ27426YZFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ274, or try a keyword search, such as Power Management Circuits
