Texas Instruments recommends a specific layout and placement for the BQ27501DRZR to ensure accurate fuel gauging and to minimize noise and interference. A recommended layout is provided in the application note 'BQ27501 Layout and Placement Guidelines' (SLUA533).
Calibration of the BQ27501DRZR involves adjusting the device's internal parameters to match the characteristics of the specific battery being used. Texas Instruments provides a calibration guide (SLUA532) that outlines the steps to follow for calibration, including the use of the bq27501 Evaluation Module and the bq27501 Configuration Tool software.
The accuracy of the fuel gauging provided by the BQ27501DRZR depends on various factors, including the quality of the calibration, the type of battery being used, and the operating conditions. However, Texas Instruments specifies that the device can provide fuel gauging accuracy of ±5% or better over the entire state-of-charge range, and ±2% or better over the middle 80% of the state-of-charge range.
The BQ27501DRZR is rated for operation over a temperature range of -40°C to +85°C. However, high-temperature operation can affect the accuracy and reliability of the device. Texas Instruments recommends that the device be used within the specified temperature range and that the user consult the datasheet and application notes for guidance on high-temperature operation.
The BQ27501DRZR provides several protection features, including overcharge, over-discharge, and over-temperature protection. To implement battery protection, the user must configure the device's protection thresholds and enable the protection features using the bq27501 Configuration Tool software. The application note 'BQ27501 Battery Protection' (SLUA531) provides more information on implementing battery protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27501DRZR Overview

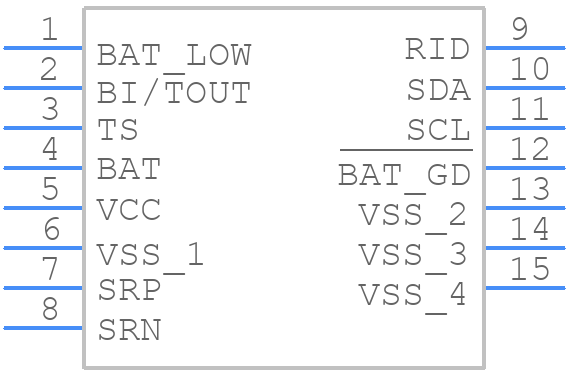

Use the download button to access the BQ27501DRZR schematic symbol and PCB footprint.
