BQ27510DRZT - Texas Instruments

Description: Fuel Gauge Li-Ion/Li-Pol 12-Pin VSON EP T/R

Download BQ27510DRZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

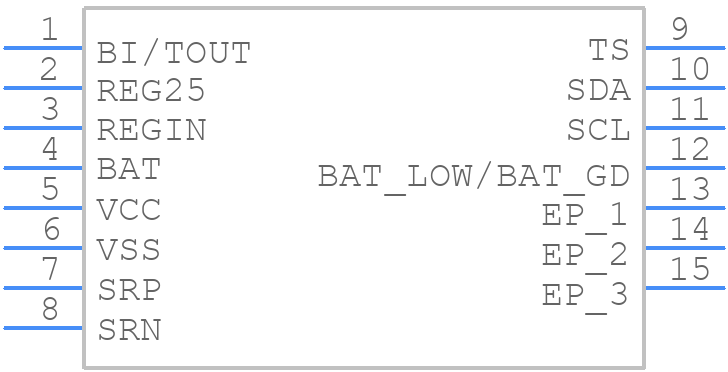

Symbol
BQ27510DRZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ27510DRZT - Texas Instruments PCB footprint - Other - Other - DRZ (S-PDSO-N12)_2022
click to zoom

BQ27510DRZT Details

  • Manufacturer Part Number:

    BQ27510DRZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    SON-12

  • Pin Count:

    12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

BQ27510DRZT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the fuel gauge circuitry is recommended. Keep the sense resistors close to the battery and use a Kelvin connection to minimize errors.
  • Use the TI-provided calibration software and follow the application note (SLUA443) guidelines to create a custom calibration file for your specific battery. This involves measuring the battery's capacity, internal resistance, and other parameters.
  • The BQ27510DRZT is designed to support up to 4 series-connected batteries. However, it's recommended to consult the datasheet and application notes for specific guidance on battery configuration and connection.
  • The BQ27510DRZT has built-in algorithms for monitoring battery health, including state-of-charge (SOC), state-of-health (SOH), and state-of-function (SOF) estimation. It also detects faults such as overcharge, over-discharge, and short-circuit conditions.
  • The BQ27510DRZT is rated for operation up to 85°C, but it's recommended to consult the datasheet and application notes for specific guidance on thermal management and derating for high-temperature applications.
