Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the sense resistors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
The BQ27520YZFR-G4 has a built-in calibration process that can be initiated through the SMBus interface. The device comes with a default calibration, but it's recommended to perform a custom calibration for optimal accuracy. Refer to the datasheet and application notes for detailed calibration procedures.
The maximum allowed voltage on the VCC pin is 3.6V. Exceeding this voltage may damage the device. It's essential to ensure that the power supply voltage is within the recommended operating range to ensure reliable operation.
The BQ27520YZFR-G4 has a sleep mode that can be enabled through the SMBus interface. When in sleep mode, the device consumes minimal power. To wake the device, send a valid SMBus command or pulse the RST pin low. Refer to the datasheet for specific sleep mode timing and protocol requirements.
The BQ27520YZFR-G4 has a typical accuracy of ±1% for the fuel gauge measurement. However, this accuracy can be affected by various factors, such as battery type, age, and temperature. It's essential to consider these factors when designing the fuel gauge system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27520YZFR-G4 Overview

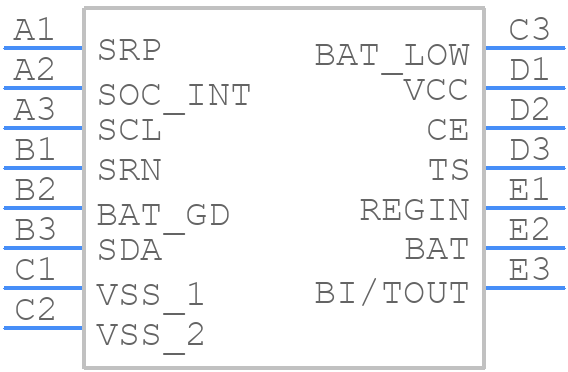

Use the download button to access the BQ27520YZFR-G4 schematic symbol, PCB footprint, and 3D model.
