Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the sense resistors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
The BQ27520YZFT-G4 has a built-in calibration process that can be initiated through the I2C interface. The device comes with a default calibration, but it's recommended to perform a custom calibration for optimal accuracy. Refer to the datasheet and application notes for detailed calibration procedures.
The BQ27520YZFT-G4 can handle a maximum current of 10A, but it's essential to consider the PCB design, thermal management, and component selection to ensure reliable operation at high currents.
The BQ27520YZFT-G4 has a sleep mode to reduce power consumption. To wake up the device, a wake-up signal can be applied to the WAKE pin. The device will then enter its normal operating mode. Refer to the datasheet for specific timing and voltage requirements.
The BQ27520YZFT-G4 has a typical accuracy of ±1% for the fuel gauge measurement, but this can vary depending on the specific application, battery type, and calibration. It's essential to follow the recommended calibration procedures and consider the device's specifications to ensure optimal accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27520YZFT-G4 Overview

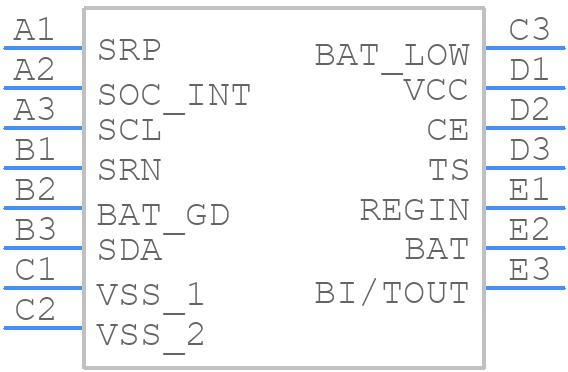

Use the download button to access the BQ27520YZFT-G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ275,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
