BQ27541DRZR-G1 - Texas Instruments

Description: Battery Management Pk-Side Impednce

Download BQ27541DRZR-G1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

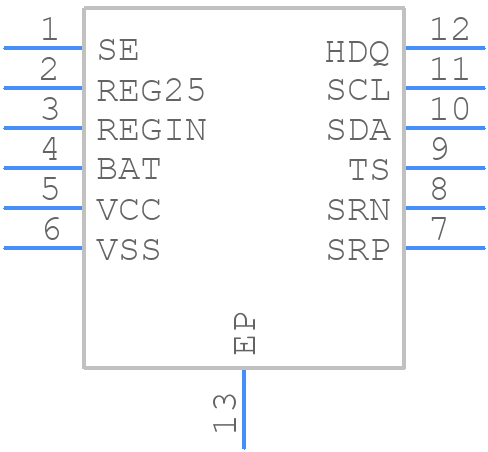

BQ27541DRZR-G1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ27541DRZR-G1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRZ (S-PDSO-N12)
click to zoom
3D Models
BQ27541DRZR-G1 - Texas Instruments - 3D model - Small Outline No-lead - DRZ (S-PDSO-N12)
click to zoom

BQ27541DRZR-G1 Details

  • Manufacturer Part Number:

    BQ27541DRZR-G1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SON-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

BQ27541DRZR-G1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the fuel gauge circuitry is recommended. Keep the sense resistors close to the battery and use a Kelvin connection to minimize errors.
  • Use the TI-provided calibration software and follow the application note (SLUA533) guidelines to create a custom calibration file for your specific battery. This involves measuring the battery's open-circuit voltage and impedance at various states of charge.
  • The BQ27541DRZR-G1 is designed to support up to 4 series-connected batteries. However, it's recommended to consult with TI's application engineers for custom configurations or larger battery packs.
  • The BQ27541DRZR-G1 has built-in algorithms to detect battery faults such as overcharge, over-discharge, and over-temperature. It also provides a battery health indicator based on capacity loss and internal resistance increase.
  • The BQ27541DRZR-G1 is rated for operation up to 85°C. However, for high-temperature applications (above 85°C), consult with TI's application engineers for custom solutions or thermal management strategies.
