BQ27545YZFT-G1 - Texas Instruments

Description: Texas Instruments BQ27545YZFT-G1, Battery Fuel Gauge IC

Download BQ27545YZFT-G1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

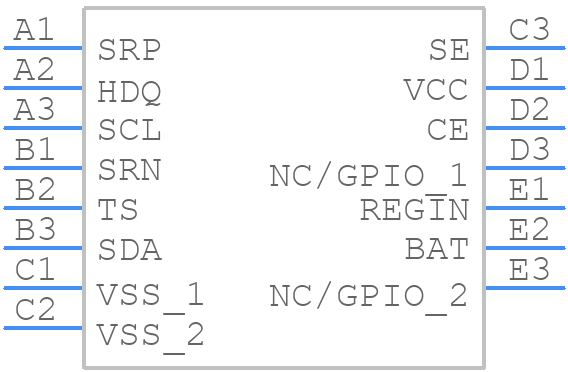

BQ27545YZFT-G1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ27545YZFT-G1 - Texas Instruments PCB footprint - BGA - BGA - YZF0015-1
click to zoom
3D Models
BQ27545YZFT-G1 - Texas Instruments - 3D model - BGA - YZF0015-1
click to zoom

BQ27545YZFT-G1 Details

  • Manufacturer Part Number:

    BQ27545YZFT-G1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B15

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

BQ27545YZFT-G1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the fuel gauge circuitry is recommended. Keep the sense resistors close to the battery and use a Kelvin connection to minimize errors.
  • Use the TI-provided calibration software and follow the application note (SLUA533) guidelines to calibrate the fuel gauge for your specific battery. You may need to perform multiple iterations of calibration to achieve optimal results.
  • Temperature affects the fuel gauge's accuracy. Use the built-in temperature sensor or an external temperature sensor to compensate for temperature effects. Apply the temperature correction factors provided in the datasheet to achieve accurate results.
  • Use the device's sleep mode to minimize power consumption when the system is in standby. Configure the wake-up mechanism using the device's interrupt pins or a timer to wake up the device only when necessary.
  • Use a separate fuel gauge for each cell or group of cells. Ensure proper isolation and balancing between cells to prevent overcharge or over-discharge. Consult the datasheet and application notes for specific guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ27545YZFT-G1 Overview

Use the download button to access the BQ27545YZFT-G1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ275, or try a keyword search, such as Power Management Circuits
