BQ29312ARTHRG4 - Texas Instruments

Description: Battery Management 2-3-4 Cell Lithium Protection AFE

Download BQ29312ARTHRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

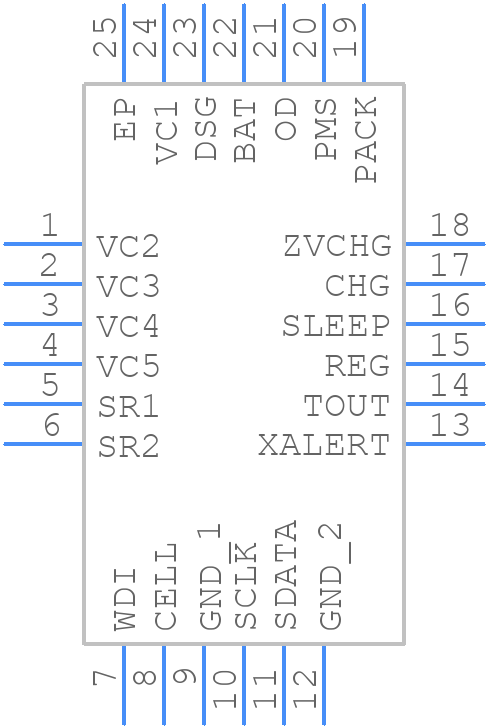

BQ29312ARTHRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ29312ARTHRG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTH(S-PVQFN-N24)
click to zoom
3D Models
BQ29312ARTHRG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RTH(S-PVQFN-N24)
click to zoom

BQ29312ARTHRG4 Details

  • Manufacturer Part Number:

    BQ29312ARTHRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ29312ARTHRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'BQ29312 PCB Layout Guidelines' (SLUAUH7) for optimal performance.
  • The selection of capacitor values depends on the specific application and operating conditions. TI provides a capacitor selection guide in the datasheet, but it's recommended to use the TI Power Stage Designer tool to get optimized capacitor values for the specific design.
  • The maximum operating temperature range for the BQ29312 is -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
  • To ensure EMC compliance, follow the guidelines in the TI application note 'EMC Design Considerations for the BQ29312' (SLUAUH8) and use proper shielding, filtering, and layout techniques to minimize electromagnetic interference.
  • The recommended method for thermal management is to use a heat sink with a thermal interface material (TIM) and to ensure good airflow around the device. TI provides thermal design guidelines in the datasheet and application notes.
