Texas Instruments provides a recommended PCB layout in the BQ29400PW evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure reliable operation.
The sense resistor value depends on the desired current sensing range and accuracy. A smaller sense resistor value provides higher current sensing accuracy but increases the power loss in the resistor. A larger sense resistor value reduces power loss but decreases current sensing accuracy. Texas Instruments provides a sense resistor selection guide in the BQ29400PW datasheet and application notes.
The BQ29400PW has a maximum voltage rating of 36V, which is the maximum voltage that can be applied to the VIN pin. Exceeding this voltage can damage the device. However, the device can withstand voltage transients up to 40V for a short duration (less than 100ms).
The BQ29400PW has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values. When the current exceeds the set threshold, the OCP pin goes low, which can be used to trigger an interrupt or shut down the system.
The BQ29400PW is rated for operation up to 125°C (TJ). However, the device's accuracy and reliability may degrade at high temperatures. It's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ29400PW Overview

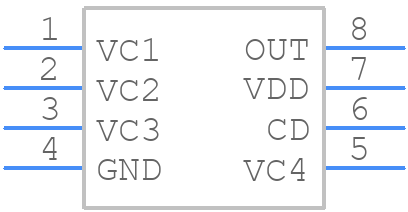

Use the download button to access the BQ29400PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ294,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
