BQ294592DRVR - Texas Instruments

Description: Overvoltage Protection Device for 2- to 3-Cell Li-Ion Batteries, with 4.30v OVP

Download BQ294592DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

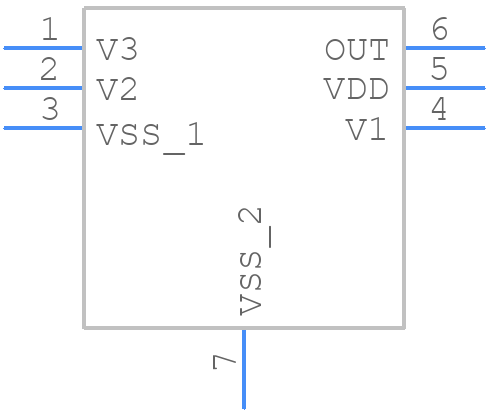

BQ294592DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ294592DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A
click to zoom
3D Models
BQ294592DRVR - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A
click to zoom

BQ294592DRVR Details

  • Manufacturer Part Number:

    BQ294592DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • Input Voltage-Max:

    1 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.002 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ294592DRVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the layout guidelines in the application note 'BQ29459xDRVR Layout Guidelines' (SLUAUH7) for optimal performance.
  • The BQ294592DRVR is designed to work with various battery chemistries, including Li-ion, Li-polymer, and Li-iron phosphate. To configure the device for a specific chemistry, refer to the 'Battery Chemistry Configuration' section in the datasheet and adjust the external resistors and capacitors accordingly.
  • The BQ294592DRVR can support up to 2A of charging current, but this may vary depending on the specific application and thermal considerations. Refer to the 'Electrical Characteristics' section in the datasheet for more information.
  • The BQ294592DRVR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. Refer to the 'Overvoltage Protection' section in the datasheet for more information on how to implement OVP in your design.
  • Yes, the BQ294592DRVR is compatible with USB-C PD controllers. However, additional circuitry and configuration may be required to ensure proper communication and power delivery. Refer to the 'USB-C Power Delivery' section in the datasheet and the application note 'BQ29459xDRVR with USB-C Power Delivery' (SLUAUH8) for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ294592DRVR Overview

Use the download button to access the BQ294592DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ294, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
