Description:BQ298xyz Voltage, Current, Temperature Protectors with an Integrated High-Side NFET Driver for Fast/Flash Charging Single-Cell Li-Ion and Li-Polymer Batteries
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure that the layout is symmetrical to minimize electromagnetic interference (EMI).
The selection of external components, such as resistors, capacitors, and inductors, depends on the specific application and requirements. Refer to the datasheet for recommended component values and follow the guidelines for component selection. It's also essential to consider factors like component tolerance, temperature rating, and reliability.
The BQ298000RUGT has an operating temperature range of -40°C to 125°C. However, it's essential to consider the junction temperature (TJ) and ensure that it does not exceed 150°C to prevent damage to the device.
The BQ298000RUGT has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. For SCP, connect the SCP pin to a capacitor that sets the short-circuit detection time. Refer to the datasheet for specific implementation details and guidelines.
The recommended input voltage range for the BQ298000RUGT is 4.5V to 18V. However, the device can operate with input voltages as low as 3.5V, but with reduced performance and efficiency.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BQ298000RUGT Overview

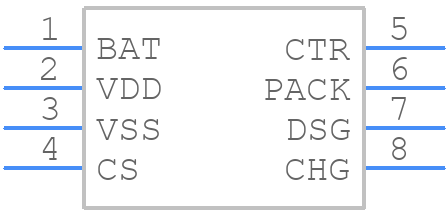

Use the download button to access the BQ298000RUGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ298,
or try a keyword search, such as Power Management Circuits
