Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure that the layout is symmetrical to minimize electromagnetic interference (EMI).
The selection of external components, such as resistors, capacitors, and inductors, depends on the specific application and requirements. Refer to the datasheet for recommended component values and follow the guidelines for component selection. It's also essential to consider factors like component tolerance, temperature rating, and reliability.
The BQ298019RUGR has an operating temperature range of -40°C to 125°C. However, it's essential to consider the junction temperature (TJ) and ensure that it does not exceed the maximum rating of 150°C. Proper thermal design and heat sinking are crucial to maintain reliable operation within the specified temperature range.
To troubleshoot issues with the BQ298019RUGR, start by verifying the power supply voltage, checking for proper connections, and ensuring that the device is properly configured. Use a multimeter to measure voltage and current at various points in the circuit. Consult the datasheet and application notes for troubleshooting guidelines and consider using a logic analyzer or oscilloscope to debug complex issues.
The BQ298019RUGR is designed to work with various battery chemistries, including lithium-ion, lithium-polymer, and lead-acid. However, it's essential to ensure that the device is configured correctly for your specific battery type and configuration. Consult the datasheet and application notes for guidance on battery selection and configuration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ298019RUGR Overview

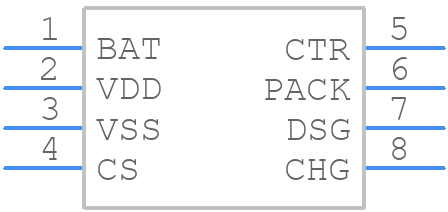

Use the download button to access the BQ298019RUGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ298,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
