Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure that the PCB layout is symmetrical to minimize electromagnetic interference (EMI).
The selection of external components, such as resistors, capacitors, and inductors, depends on the specific application and requirements. Refer to the datasheet for recommended component values and follow the guidelines for component selection. It's also essential to consider factors such as component tolerance, temperature rating, and reliability.
The BQ298216RUGR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
To troubleshoot issues with the BQ298216RUGR, follow a systematic approach, starting with the basics, such as checking the power supply, clock signal, and communication interfaces. Use tools such as oscilloscopes, logic analyzers, and debug software to identify the root cause of the issue. Refer to the datasheet and application notes for troubleshooting guidelines and FAQs.
The BQ298216RUGR is primarily designed for USB charging, but it can be used with other charging protocols, such as USB-C PD, with additional external circuitry and firmware modifications. However, this may require custom design and testing to ensure compatibility and compliance with the relevant standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ298216RUGR Overview

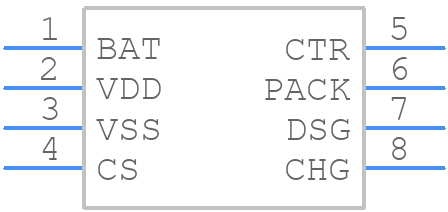

Use the download button to access the BQ298216RUGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ298,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
