The recommended layout and placement for the BQ3050DBT involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the power plane, the third layer for the ground plane, and the bottom layer for the signals.
To optimize the charging current for your specific battery, you need to consider the battery's chemistry, capacity, and recommended charging current. The BQ3050DBT has a programmable charging current, which can be set using the ISET pin. You can use the datasheet's charging current calculation formula to determine the optimal charging current for your battery.
The BQ3050DBT has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To ensure reliable operation, it's essential to provide adequate thermal dissipation, such as using a heat sink or a thermal pad, and keeping the device away from heat sources.
The BQ3050DBT has a built-in overcharge protection feature that can be enabled by connecting the OVP pin to the battery voltage sense pin. You can also implement additional overcharge protection by monitoring the battery voltage and current, and disconnecting the charger when the battery is fully charged.
To minimize EMI, it's essential to follow good PCB design practices, such as using a solid ground plane, keeping the input and output capacitors close to the device, and using shielded cables for the charger and battery connections. Additionally, you can use EMI filters and shielding to reduce electromagnetic radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ3050DBT Overview

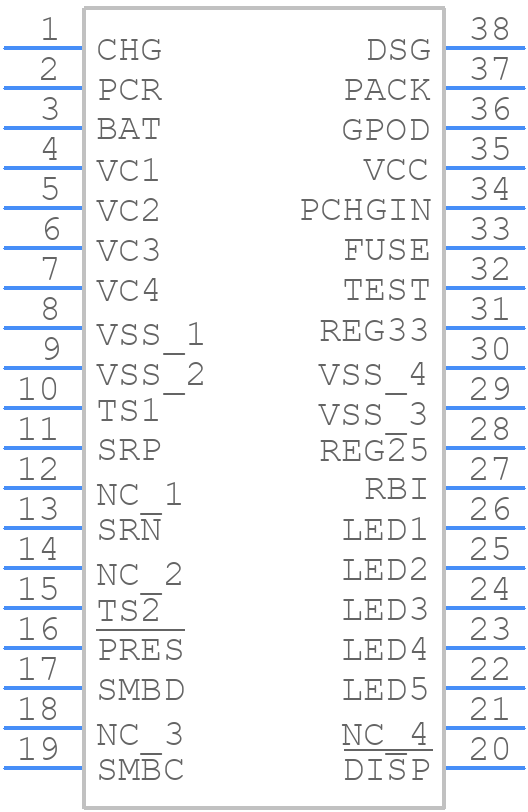

Use the download button to access the BQ3050DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ305,
or try a keyword search, such as Power Management Circuits
