BQ34110PWR - Texas Instruments

Description: Battery Management Multi-Chemistry High-cell Count Battery Fuel Gauge w/Integrated Rarely Discharged Module 14-TSSOP -40 to 85

Download BQ34110PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

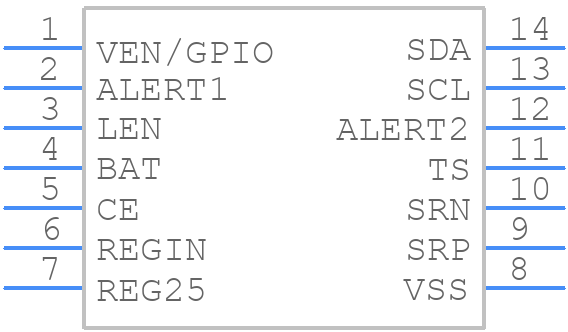

BQ34110PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ34110PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - BQ34110PWR-1
click to zoom
3D Models
BQ34110PWR - Texas Instruments - 3D model - Small Outline Packages - BQ34110PWR-1
click to zoom

BQ34110PWR Details

  • Manufacturer Part Number:

    BQ34110PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ34110PWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat.
  • Monitor the input voltage, output voltage, and current to ensure they are within the specified ranges. Use thermal monitoring and protection to prevent overheating.
  • The maximum allowed voltage drop is 0.5V. Exceeding this may lead to reduced efficiency, increased heat, and potential damage to the device.
  • Yes, but with derating. The device is rated for operation up to 105°C, but the maximum junction temperature is 150°C. Derate the output current and voltage according to the temperature derating curve in the datasheet.
  • Use an external OCP circuit with a sense resistor and a comparator to detect overcurrent conditions. For SCP, use a fuse or a PPTC (positive temperature coefficient) thermistor in series with the output.
