Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauges: PCB Layout Guidelines' (SLUA443) for optimal performance.
The BQ34Z110PW has a built-in calibration mechanism. Refer to the datasheet section 'Calibration' for details. Additionally, the application note 'BQ34Z110 Fuel Gauge Calibration' (SLUA532) provides a step-by-step guide on how to calibrate the fuel gauge.
The accuracy of the fuel gauge depends on various factors such as the battery type, age, and operating conditions. According to the datasheet, the BQ34Z110PW has an accuracy of ±1% for most battery types. However, it's recommended to consult the application note 'Understanding Fuel Gauge Accuracy' (SLUA444) for more information on how to achieve optimal accuracy.
Yes, the BQ34Z110PW supports multiple battery chemistries, including Li-ion, Li-polymer, and Li-iron phosphate. However, it's recommended to consult the datasheet and application notes for specific configuration and calibration requirements for each battery chemistry.
The BQ34Z110PW has an I2C interface that can be connected to a microcontroller. Refer to the datasheet section 'Interface' for details on the I2C protocol and pin connections. Additionally, the application note 'Interfacing the BQ34Z110 with a Microcontroller' (SLUA533) provides example code and guidelines for interfacing with popular microcontrollers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ34Z110PW Overview

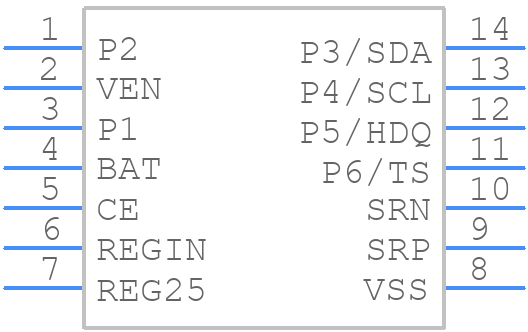

Use the download button to access the BQ34Z110PW schematic symbol, PCB footprint, and 3D model.
