BQ34Z110PWR - Texas Instruments

Description: Battery Management Wide Range Fuel Gge w/ Impedance Track

Download BQ34Z110PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

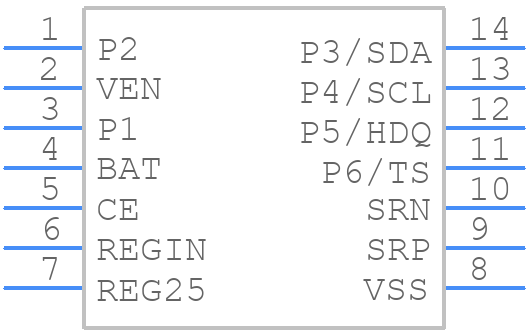

BQ34Z110PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ34Z110PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
BQ34Z110PWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

BQ34Z110PWR Details

  • Manufacturer Part Number:

    BQ34Z110PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ34Z110PWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ34Z110PWR involves keeping the device as close as possible to the battery, using a solid ground plane, and minimizing the length of the battery connections. TI provides a recommended layout in the datasheet and application notes.
  • Calibration involves adjusting the device's internal registers to match the specific battery chemistry and characteristics. TI provides a calibration guide and software tools to help with this process.
  • The BQ34Z110PWR is designed to support up to 4 series-connected batteries. However, it's possible to connect more batteries in parallel, but this requires additional external circuitry and careful design consideration.
  • Yes, the BQ34Z110PWR is designed to be flexible and can be used with various battery chemistries. However, the device's configuration and calibration may need to be adjusted depending on the specific battery type and characteristics.
  • The BQ34Z110PWR provides a balancing function to ensure that each cell in a multi-cell battery pack is charged and discharged evenly. It also supports various charging protocols, including constant current and constant voltage charging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ34Z110PWR Overview

Use the download button to access the BQ34Z110PWR schematic symbol, PCB footprint, and 3D model.
