Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Battery Fuel Gauge Design Guide' (SLUA566) and the 'PCB Layout Guidelines for Fuel Gauges' (SLUA567) application notes.
Calibration is done through the I2C interface using the 'CAL_MODE' command. The device comes pre-calibrated, but calibration may be required after assembly or if the battery chemistry changes. Refer to the 'BQ34Z653DBT Calibration Guide' (SLUA568) application note for detailed instructions.
The BQ34Z653DBT has an SOC accuracy of ±5% over the entire operating range, as specified in the datasheet. However, this accuracy can be improved to ±2% by using the 'Learn Cycle' feature, which adapts to the battery's characteristics over time.
Yes, the BQ34Z653DBT supports various battery chemistries, including Li-ion, Li-polymer, and Li-iron phosphate. However, the device may require calibration and configuration adjustments for optimal performance with different chemistries. Refer to the 'Battery Fuel Gauge Design Guide' (SLUA566) for more information.
The POR and BOR are internal reset mechanisms that ensure the device starts up correctly. The POR is triggered by a power-on event, while the BOR is triggered by a voltage drop below the minimum operating voltage. The device will automatically recover from these events, but it's recommended to add external circuitry to ensure a clean power-up sequence.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ34Z653DBT Overview

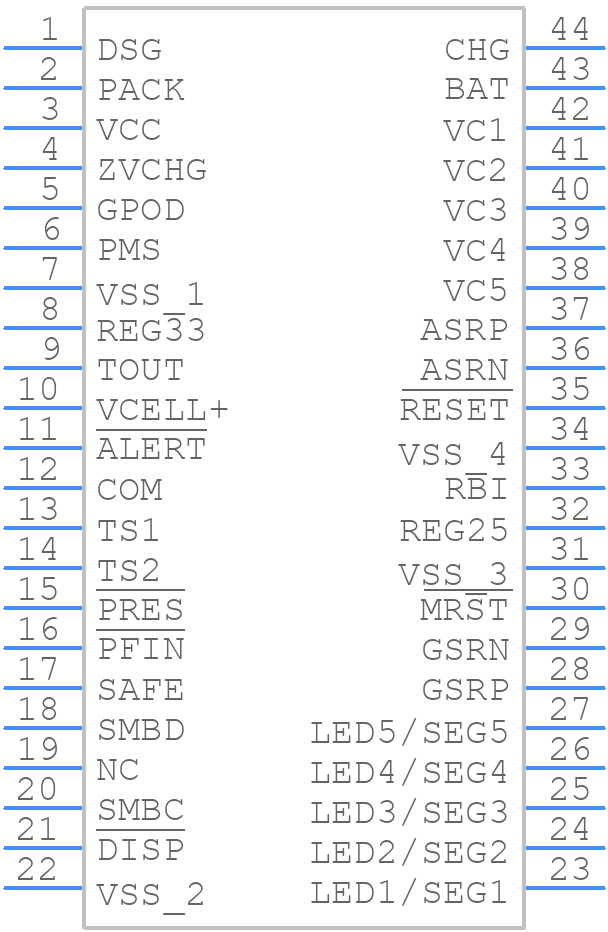

Use the download button to access the BQ34Z653DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ34Z,
or try a keyword search, such as Power Management Circuits
