A good PCB layout for the BQ34Z653DBTR involves keeping the device as close as possible to the battery, using a solid ground plane, and minimizing the length of the battery connections. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane for the battery voltage.
Calibration of the BQ34Z653DBTR involves adjusting the device's internal registers to match the specific battery chemistry and capacity. This can be done using the TI-provided software tools, such as the BQ34Z653DBTR Evaluation Module, and following the calibration procedure outlined in the datasheet.
The BQ34Z653DBTR is rated for operation from -40°C to 85°C, but it's recommended to operate within a narrower range (e.g., 0°C to 60°C) for optimal performance and accuracy.
While the BQ34Z653DBTR is optimized for lithium-ion batteries, it can be used with other chemistries such as lead-acid, nickel-cadmium, or nickel-metal hydride. However, the device's accuracy and performance may vary depending on the specific chemistry and application.
The BQ34Z653DBTR provides a fuel gauge output that indicates the battery's state-of-charge (SOC). To implement fuel gauging, connect the fuel gauge output to a microcontroller or other processing unit, and use the provided software libraries to interpret the SOC data and display it to the user.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ34Z653DBTR Overview

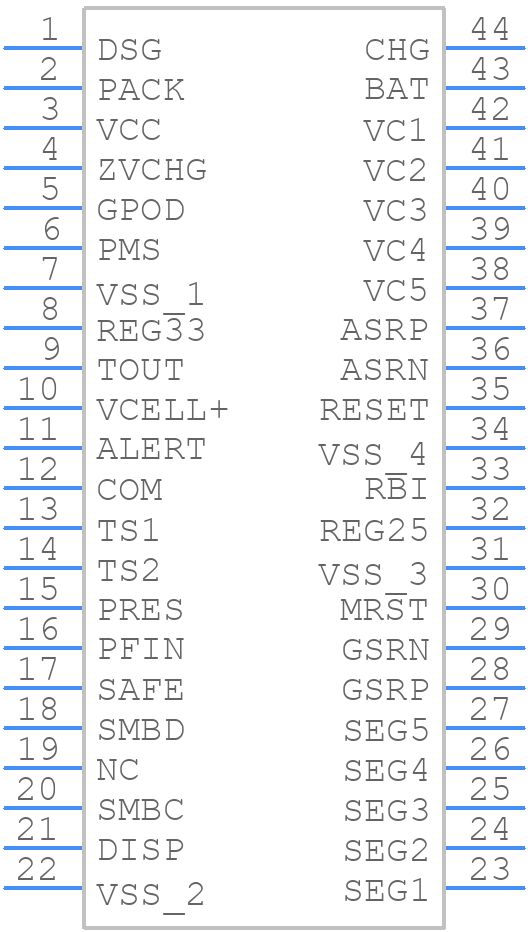

Use the download button to access the BQ34Z653DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ34Z,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
