TI recommends a 4-layer PCB with a solid ground plane, and placing the BQ4050RSMR near the battery and away from noise sources. A good layout practice is to keep the high-current paths short and wide, and to use a common ground point for the IC and the battery.
The BQ4050RSMR has a programmable charging profile. You can use the TI-provided software tools, such as the Battery Management Studio, to customize the charging profile for your specific battery chemistry and capacity. You can also adjust the charging current, voltage, and termination points to optimize the charging process.
The BQ4050RSMR has a thermal shutdown feature that protects the device from overheating. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device can operate up to 85°C, but thermal derating may be necessary above 70°C.
The BQ4050RSMR has a built-in over-discharge protection feature. You can set the over-discharge voltage threshold using the OVDP pin. When the battery voltage falls below the set threshold, the device will disconnect the load and prevent further discharge.
Yes, the BQ4050RSMR is designed to support multiple battery chemistries, including Li-ion, Li-polymer, and NiMH. You can adjust the charging profile and parameters to accommodate different battery chemistries using the TI-provided software tools.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ4050RSMR Overview

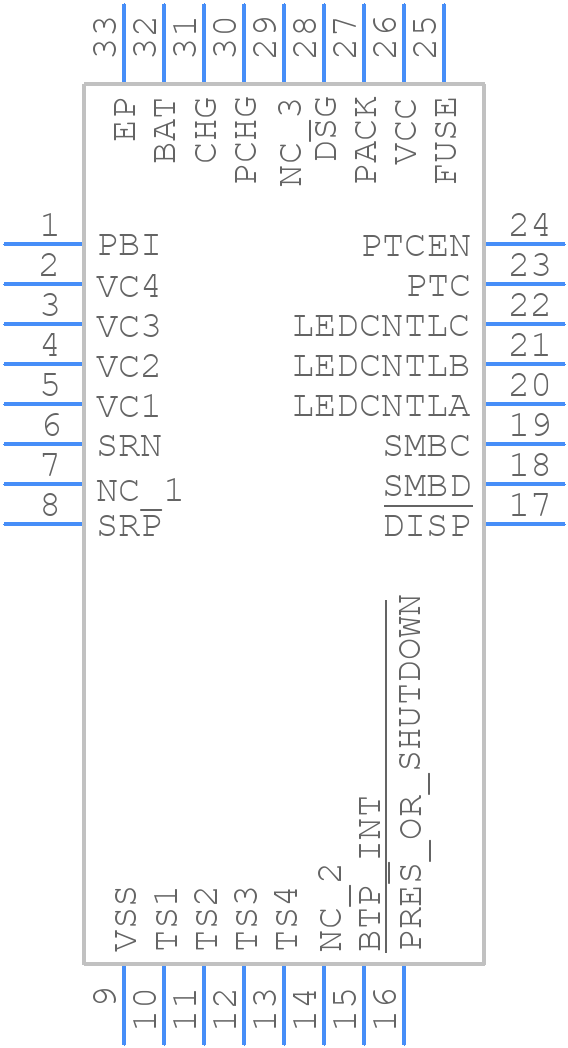

Use the download button to access the BQ4050RSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ405,
or try a keyword search, such as Power Management Circuits
