BQ4050RSMT - Texas Instruments

Description: 1-4 Series CEDV Battery Fuel (Gas) Gauge

Download BQ4050RSMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

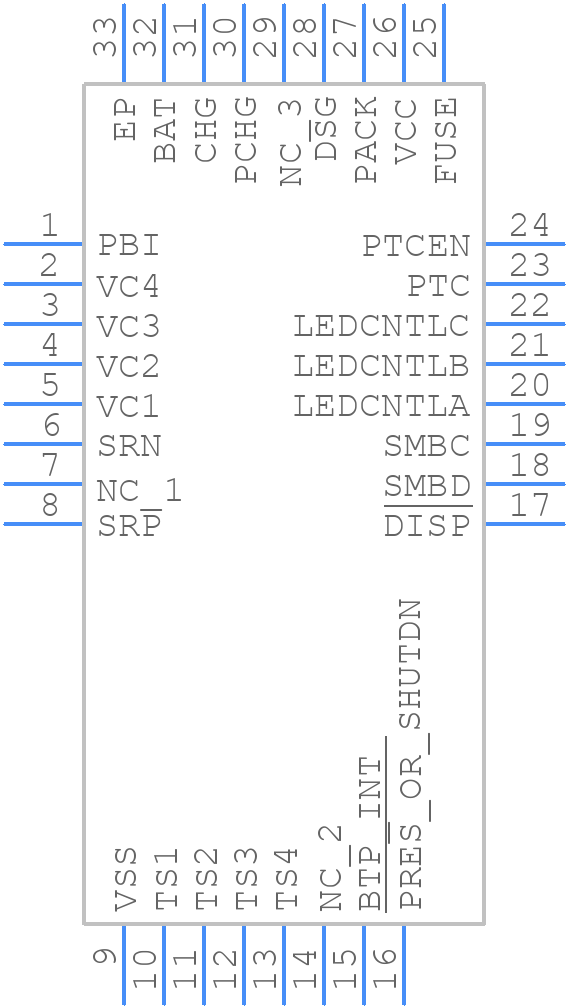

BQ4050RSMT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ4050RSMT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM0032A
click to zoom
3D Models
BQ4050RSMT - Texas Instruments - 3D model - Quad Flat No-Lead - RSM0032A
click to zoom

BQ4050RSMT Details

  • Manufacturer Part Number:

    BQ4050RSMT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-03-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    14.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ4050RSMT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
  • Use a power-on reset (POR) circuit to ensure the IC is properly powered up and configured during startup. The POR circuit should hold the EN pin low until the input voltage reaches the minimum operating voltage.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and have a low equivalent series resistance (ESR).
  • Choose an output capacitor with a low ESR and a capacitance value between 10uF to 47uF. The output capacitor should be placed close to the VOUT pin and have a voltage rating that exceeds the output voltage.
  • The BQ4050RSMT has a thermal derating of 1.5°C/W. To ensure reliable operation at high temperatures, use a heat sink or a thermal pad, and ensure good airflow around the IC. Also, reduce the output current or use a lower input voltage to reduce the power dissipation.
