BQ40Z50RSMR-R2 - Texas Instruments

Description: Battery Management 1-Series, 2-Series, 3-Series, and 4-Series Li-Ion Battery 32-VQFN -40 to 85

Download BQ40Z50RSMR-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

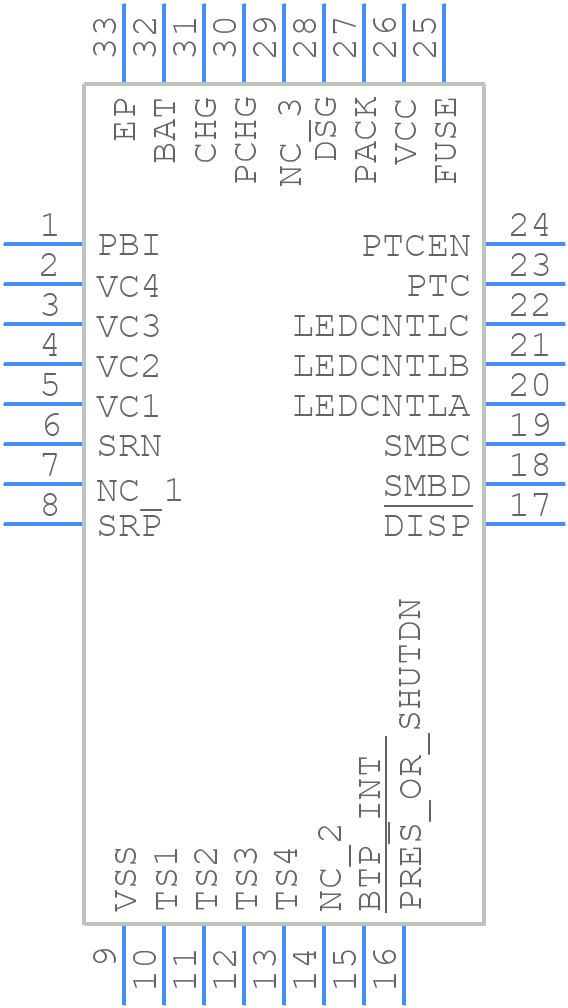

Symbol
BQ40Z50RSMR-R2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ40Z50RSMR-R2 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM (S-PVQFN-N32) EP1.4_1
click to zoom
3D Models
BQ40Z50RSMR-R2 - Texas Instruments - 3D model - Quad Flat No-Lead - RSM (S-PVQFN-N32) EP1.4_1
click to zoom

BQ40Z50RSMR-R2 Details

  • Manufacturer Part Number:

    BQ40Z50RSMR-R2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    14.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ40Z50RSMR-R2 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling.
  • Calibration involves setting the device's internal registers to match the specific battery chemistry and capacity. TI provides a calibration guide and software tools to assist with this process.
  • The BQ40Z50RSMR-R2's SOC measurement accuracy is typically ±5% over the entire operating range, but this can be affected by factors such as battery age, temperature, and charging/discharging patterns.
  • Yes, the BQ40Z50RSMR-R2 is designed to support various battery chemistries, including Li-ion, Li-polymer, and NiMH. However, calibration and configuration may vary depending on the specific chemistry used.
  • The BQ40Z50RSMR-R2 can compensate for battery self-discharge by using its internal clock and temperature sensor to estimate the battery's capacity loss over time.
