BQ40Z60RHBT - Texas Instruments

Description: Complete Multi-Cell Battery Manager | Battery Fuel (Gas) Gauge

Download BQ40Z60RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

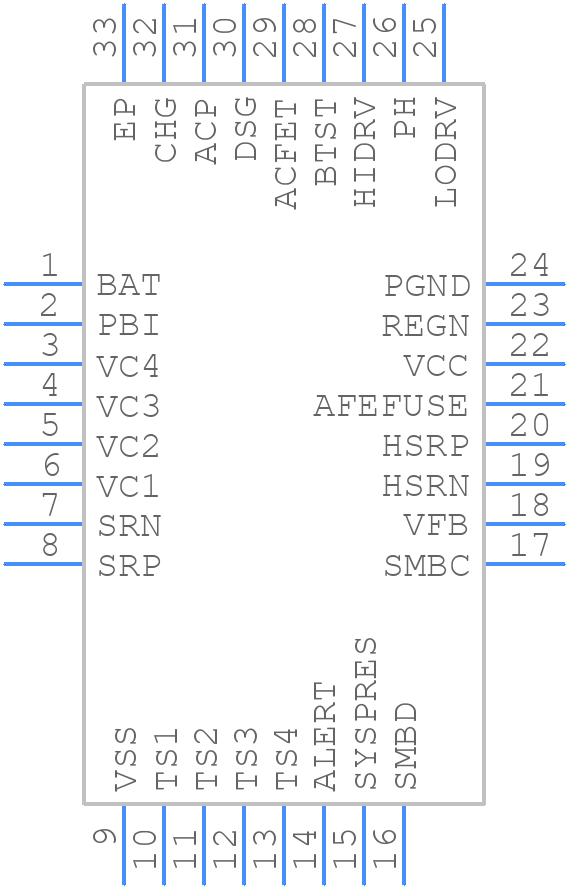

Symbol
BQ40Z60RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ40Z60RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom
3D Models
BQ40Z60RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom

BQ40Z60RHBT Details

  • Manufacturer Part Number:

    BQ40Z60RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

BQ40Z60RHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, and using a solid ground plane to minimize noise and EMI.
  • The BQ40Z60RHBT has a programmable charging profile, and optimizing it for your specific battery requires understanding the battery's characteristics, such as its chemistry, capacity, and recommended charging voltage. Consult the battery datasheet and the BQ40Z60RHBT datasheet for guidance.
  • The BQ40Z60RHBT is rated for operation from -40°C to 85°C, but the maximum ambient temperature range may vary depending on the specific application and thermal design. Ensure proper thermal management and consider the device's thermal characteristics when designing your system.
  • The BQ40Z60RHBT is designed for lithium-ion and lithium-polymer batteries, but it can be used with other chemistries with proper configuration and calibration. Consult the datasheet and application notes for guidance on using the device with different battery chemistries.
  • The BQ40Z60RHBT has built-in overcharge protection, but it's essential to configure it correctly. Set the overcharge protection threshold voltage and timer according to the battery's specifications and the system's requirements. Consult the datasheet and application notes for guidance.
