Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the power traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, ensure that the layout is symmetrical to minimize electromagnetic interference (EMI).
The inductor value selection depends on the input voltage, output voltage, and switching frequency. Texas Instruments provides an inductor selection guide in the datasheet, but you can also use online inductor selection tools or consult with a TI representative for specific guidance. Generally, a higher inductance value is recommended for higher input voltages and lower switching frequencies.
The BQ50002RHBT is rated for operation up to 105°C ambient temperature, but it's essential to consider the junction temperature (TJ) as well. The maximum TJ is 125°C. Ensure that your design provides adequate thermal management, such as heat sinks or thermal pads, to keep the device within the recommended temperature range.
To ensure EMC compliance, follow the recommended layout and component placement guidelines in the datasheet. Additionally, use shielding, filtering, and decoupling techniques to minimize EMI. Texas Instruments provides EMC guidelines and application notes that can help you design a compliant system.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as X5R or X7R. The value depends on the input voltage and switching frequency, but a typical value is 10-22 μF. Ensure that the capacitor is rated for the maximum input voltage and has a low equivalent series resistance (ESR) to minimize voltage ripple and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ50002RHBT Overview

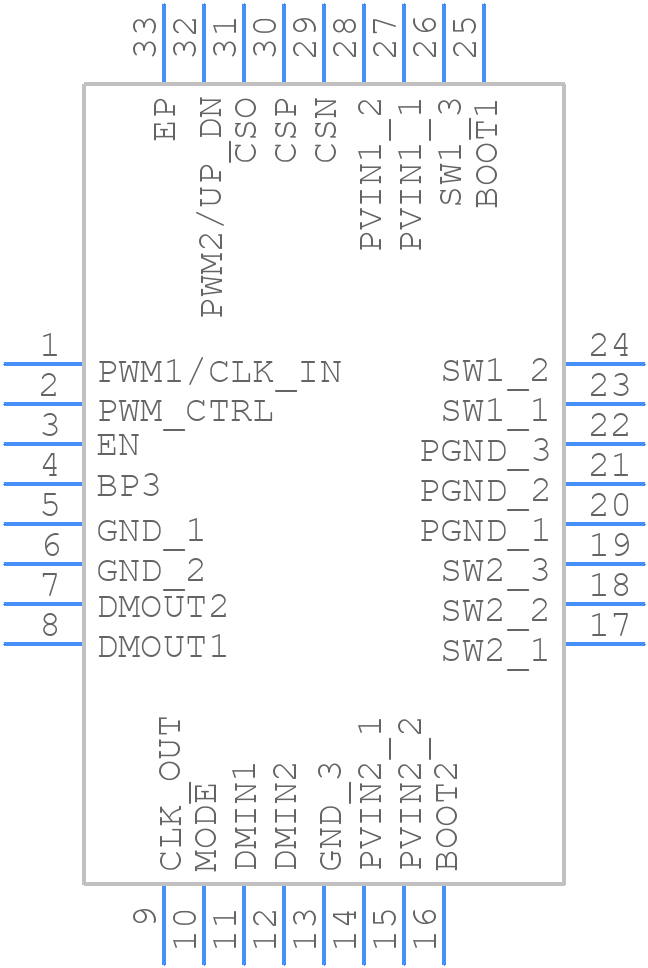

Use the download button to access the BQ50002RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ500,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
