BQ51003YFPR - Texas Instruments

Description: Wireless Charging ICs Wireless Pwr Receivr

Download BQ51003YFPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

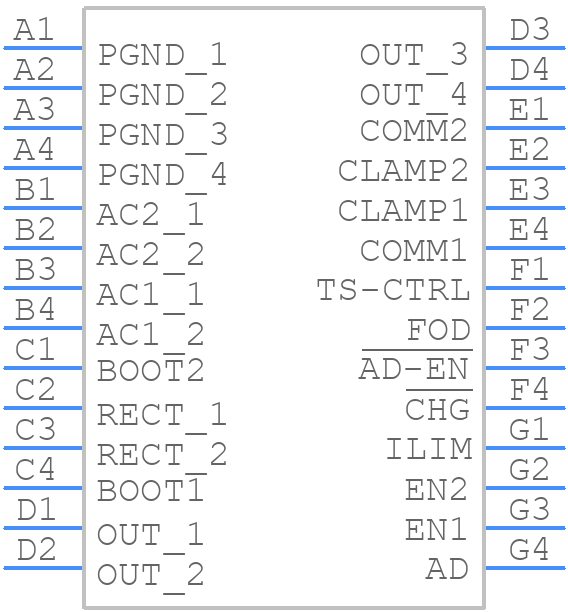

BQ51003YFPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ51003YFPR - Texas Instruments PCB footprint - BGA - BGA - YFP(R-XBGA-N28)
click to zoom
3D Models
BQ51003YFPR - Texas Instruments - 3D model - BGA - YFP(R-XBGA-N28)
click to zoom

BQ51003YFPR Details

  • Manufacturer Part Number:

    BQ51003YFPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Battery Supply:

    5 V

  • JESD-30 Code:

    R-XBGA-B28

  • JESD-609 Code:

    e1

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.88 mm

BQ51003YFPR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the high-frequency signals is recommended. Keep the layout compact and symmetrical, with the BQ51003YFPR at the center. Use a common mode choke and a shielded inductor to minimize EMI.
  • Ensure the transmitter and receiver coils are aligned properly, and the coils are designed for optimal efficiency. Use a shielding material to minimize electromagnetic interference. Implement a foreign object detection (FOD) mechanism to prevent overheating.
  • The BQ51003YFPR can transfer up to 5W of power wirelessly, depending on the coil design, alignment, and operating frequency. However, the actual power transfer efficiency may vary depending on the system design and implementation.
  • Use external components such as a voltage supervisor and a thermistor to implement OVP and OTP. The BQ51003YFPR has built-in protection mechanisms, but additional external protection is recommended to ensure reliable operation.
  • The recommended input voltage range is 3.3V to 5.5V, with a typical operating voltage of 5V. Ensure the input voltage is regulated and filtered to prevent noise and ripple.
