Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal pads, to maintain a safe operating temperature.
Operating the BQ51013BYFPT outside the recommended input voltage range may affect its performance, efficiency, and reliability. Using a lower input voltage may reduce the output voltage and current, while a higher input voltage may increase the risk of overheating or damage to the device.
The BQ51013BYFPT has a programmable output voltage and current. To optimize the output for your application, refer to the datasheet for the recommended resistor values and calculation formulas. You can also use Texas Instruments' online tools, such as the WEBENCH Power Designer, to simplify the design process.
To ensure EMI and EMC compliance, follow good design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters or ferrite beads on the input and output lines. Additionally, consider using a spread-spectrum clock or frequency hopping to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ51013BYFPT Overview

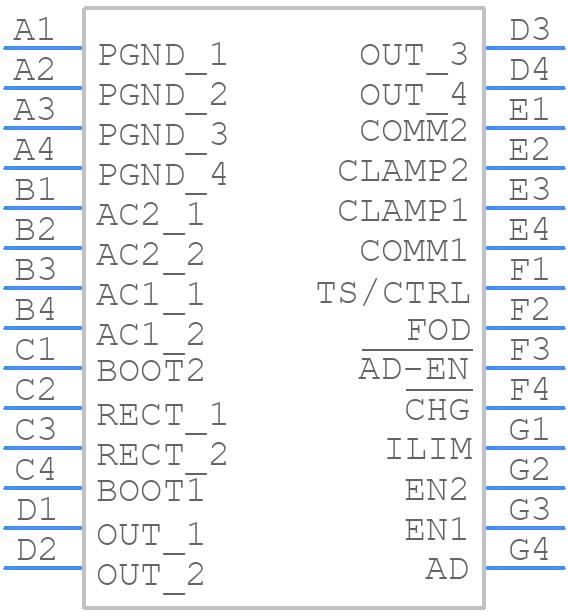

Use the download button to access the BQ51013BYFPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ510,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
