Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure reliable wireless charging operation, ensure the transmitter and receiver coils are properly aligned, the receiver coil is centered, and the transmitter is operating within the specified frequency range. Also, follow the recommended component values and layout guidelines.
The BQ51051BRHLT has an operating temperature range of -40°C to 125°C, but it's essential to consider the thermal design and heat dissipation to ensure reliable operation within this range.
The BQ51051BRHLT is designed for Qi-compliant wireless charging, but it may be possible to use it with other standards like AirFuel or PMA with modifications to the transmitter and receiver coils. However, this may require additional design and testing efforts.
To troubleshoot issues, start by verifying the power supply, clock, and reset signals. Check the transmitter and receiver coil alignment, and ensure the component values and layout meet the recommended specifications. Use oscilloscopes and logic analyzers to debug the digital signals and communication protocols.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ51051BRHLT Overview

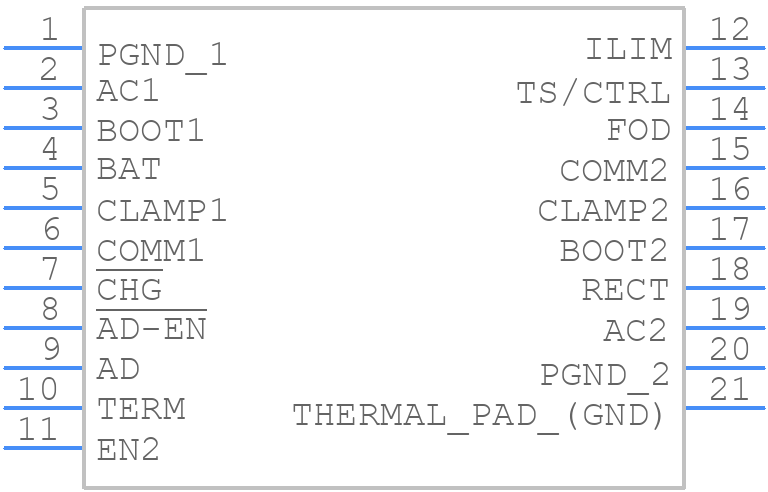

Use the download button to access the BQ51051BRHLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ510,
or try a keyword search, such as Power Management Circuits
