BQ76200PWR - Texas Instruments

Description: High-Side N-Channel FET Driver

Download BQ76200PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

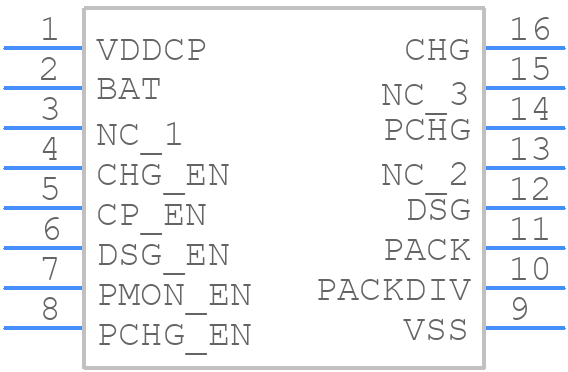

BQ76200PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ76200PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
BQ76200PWR - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

BQ76200PWR Details

  • Manufacturer Part Number:

    BQ76200PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Input Voltage-Max:

    75 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    75 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ76200PWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power traces short and wide, and use a common ground point for the input and output capacitors.
  • Monitor the input voltage, output current, and junction temperature to ensure they are within the specified limits. Use the thermal resistance (RθJA) to estimate the junction temperature.
  • A low-ESR ceramic capacitor (X5R or X7R) with a value of 10-22 μF is recommended. The capacitor should be placed close to the VIN pin and have a low inductance path to the power plane.
  • Choose an output capacitor with a low ESR and a value of 10-47 μF. The capacitor should be placed close to the VOUT pin and have a low inductance path to the power plane. Consider using a ceramic or polymer capacitor.
  • The EN (enable) pin is used to turn the device on and off. Connect the EN pin to a logic-level signal (e.g., from a microcontroller) to enable or disable the device. A high level (>1.4 V) enables the device, while a low level (<0.4 V) disables it.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ76200PWR Overview

Use the download button to access the BQ76200PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ762, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
