Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration is crucial for accurate battery monitoring. Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage reference, adjusting the gain and offset of the ADC, and configuring the battery chemistry and capacity. It's also essential to use a high-accuracy voltage reference and to calibrate the device at multiple temperatures.
The BQ7694003DBT can monitor up to 16 series-connected batteries. However, the maximum number of batteries that can be connected depends on the specific application and the battery management system (BMS) design. It's essential to ensure that the device can handle the total voltage and current of the battery pack.
The BQ7694003DBT provides cell balancing and charging control through its internal state machine and analog-to-digital converter (ADC). The device can detect cell imbalance and adjust the charging current to balance the cells. However, the BQ7694003DBT does not provide active cell balancing; instead, it relies on external balancing circuits or passive balancing methods.
The BQ7694003DBT uses a serial peripheral interface (SPI) for communication. The device operates as a slave device, and the host controller can access the device's registers and data through the SPI interface. The datasheet provides detailed information on the SPI protocol, register maps, and communication timing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7694003DBT Overview

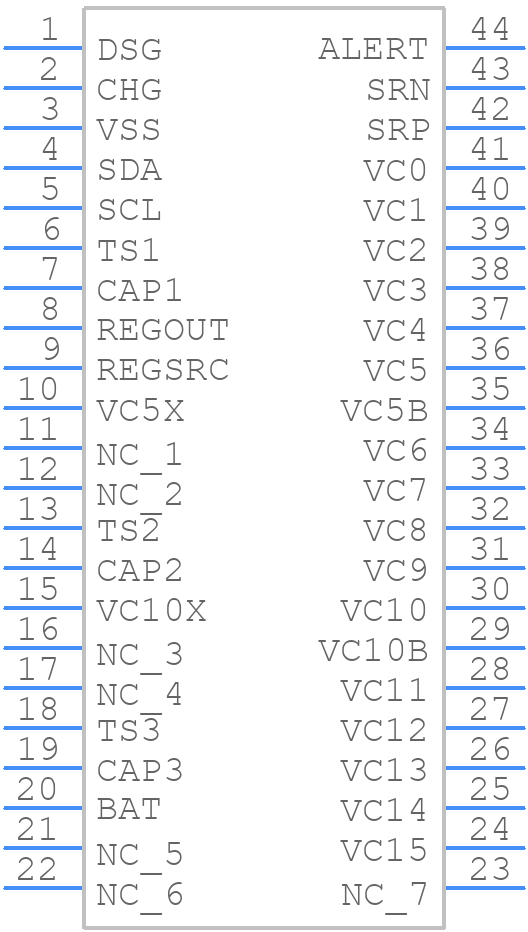

Use the download button to access the BQ7694003DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
