Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration is crucial for accurate battery monitoring. Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage reference, adjusting the gain and offset of the ADC, and configuring the battery chemistry and capacity. It's also essential to consider the battery's state of charge, temperature, and age during calibration.
The BQ7694003DBTR is designed to monitor up to 16 series-connected battery cells. However, the maximum number of batteries that can be connected depends on the specific application and the battery management system's requirements. It's essential to consult the datasheet and application notes for guidance on configuring the device for multiple battery cells.
The BQ7694003DBTR has built-in overcharge and over-discharge protection features. It continuously monitors the battery voltage and current, and can detect when the battery is approaching overcharge or over-discharge conditions. The device can then trigger an interrupt or alarm to alert the system to take corrective action, such as disconnecting the charger or load.
The BQ7694003DBTR is rated for operation up to 85°C, but it's essential to consider the device's thermal characteristics and the application's thermal requirements. Ensure that the device is properly heat-sinked, and consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7694003DBTR Overview

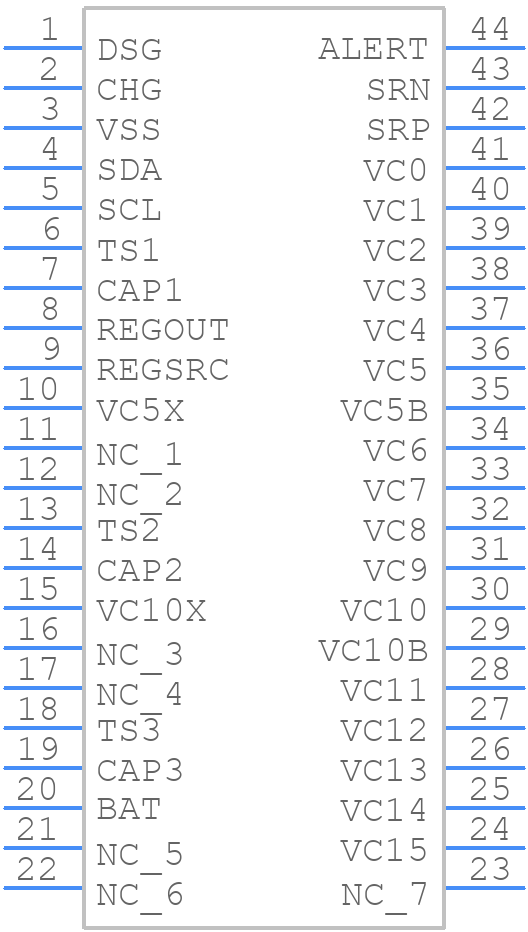

Use the download button to access the BQ7694003DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
