Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration is crucial for accurate battery monitoring. Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage reference, adjusting the gain and offset of the ADC, and configuring the battery chemistry and capacity. It's also essential to use a high-precision voltage reference and a stable temperature environment during calibration.
The BQ7694006DBT is designed to monitor up to 16 series-connected battery cells. However, the maximum number of batteries that can be connected depends on the specific application and the battery management system (BMS) design. It's essential to ensure that the BQ7694006DBT is configured correctly to handle the desired number of battery cells.
The BQ7694006DBT provides cell balancing and charging control through its internal state machine and analog-to-digital converter (ADC). The device can detect cell imbalance and adjust the charging current to balance the cells. However, the BQ7694006DBT does not provide external charging control signals; instead, it relies on the system's charging controller to regulate the charging process.
The BQ7694006DBT uses a proprietary communication protocol, which is a modified SPI (Serial Peripheral Interface) protocol. The device can operate in either master or slave mode, and it supports multiple communication modes, including polling and interrupt-driven modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7694006DBT Overview

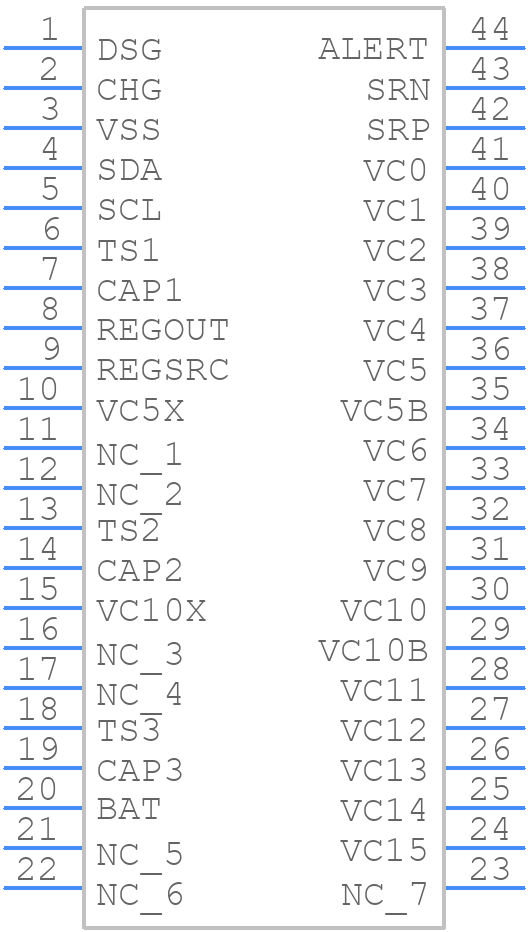

Use the download button to access the BQ7694006DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
