Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration is crucial for accurate battery monitoring. Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage reference, adjusting the gain and offset of the ADC, and configuring the battery chemistry and capacity. It's also essential to use a high-accuracy voltage reference and to calibrate the device at multiple temperatures.
The BQ7694006DBTR is designed to monitor up to 16 series-connected batteries. However, the maximum number of batteries that can be connected depends on the specific application and the battery chemistry. It's essential to consult the datasheet and application notes for guidance on configuring the device for multiple battery monitoring.
The BQ7694006DBTR provides built-in battery balancing and charging control. It can detect imbalance between cells and adjust the charging current to balance the cells. The device also supports various charging profiles, including constant current and constant voltage charging. However, the specific charging and balancing algorithms may require customization depending on the application and battery chemistry.
The BQ7694006DBTR uses a proprietary communication protocol over an I2C interface. The device can be configured and monitored using the TI-provided software development kit (SDK) and evaluation software. The SDK provides a set of APIs and example code to interface with the device and access its features.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7694006DBTR Overview

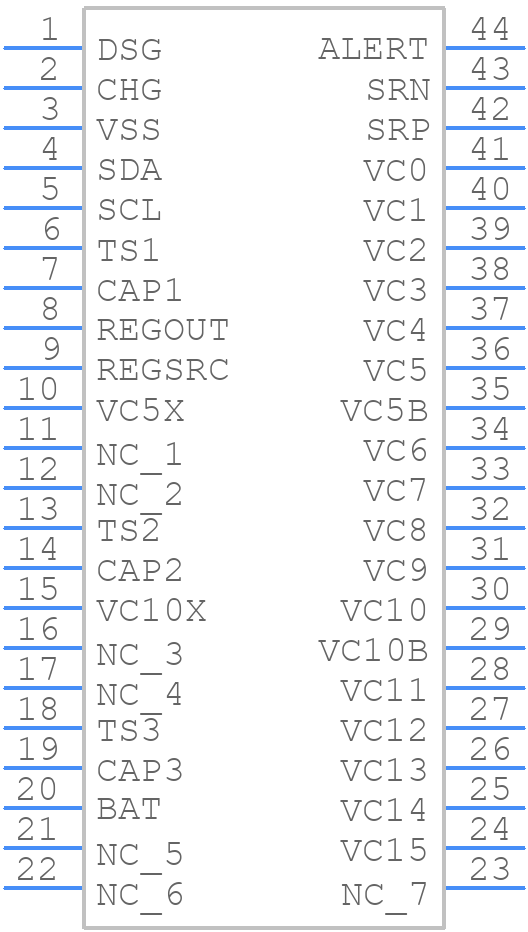

Use the download button to access the BQ7694006DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
