Description:3-S TO 16-S HIGH ACCURACY BATTERY BQ76952 3-Series to 16-Series High Accuracy Battery Monitor and Protector for LiIon, Li Polymer, and LiFePO4 Battery Packs
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration involves adjusting the internal voltage and current sense amplifiers to ensure accurate measurements. Follow the calibration procedure outlined in the datasheet, which involves applying known voltage and current levels to the device and adjusting the internal amplifiers accordingly. It's essential to perform calibration after power-up and after any changes to the system configuration.
The BQ76952PFBR communicates with digital systems through an I2C or SPI interface. Ensure that the interface is properly configured, and the clock frequency is within the recommended range (typically 100 kHz to 400 kHz for I2C and up to 10 MHz for SPI). Use a level shifter if necessary to match the voltage levels between the BQ76952PFBR and the digital system.
The BQ76952PFBR has built-in overvoltage and undervoltage detection capabilities. Configure the device to generate an interrupt or flag when an overvoltage or undervoltage condition is detected. Implement a suitable response in your system, such as shutting down the power supply or alerting the user, to prevent damage or ensure safe operation.
The BQ76952PFBR is a high-power device and can generate significant heat. Ensure good thermal conductivity by using a heat sink or thermal pad, and provide adequate airflow around the device. Follow the thermal design guidelines in the datasheet, and consider using thermal simulation tools to optimize the thermal design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ76952PFBR Overview

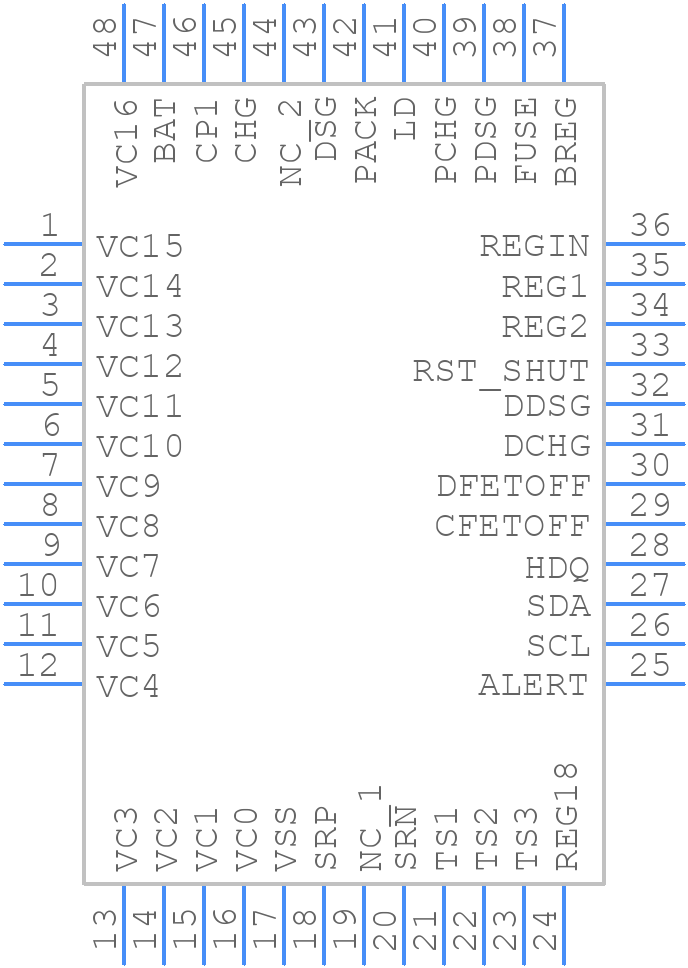

Use the download button to access the BQ76952PFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
