Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Using a different capacitor value for the VCC bypass capacitor may affect the device's stability and performance. The recommended value is 10uF, but if a different value is used, it's essential to ensure the capacitor's ESR and ESL meet the device's requirements to maintain stability and prevent oscillations.
To troubleshoot output voltage regulation issues, check the input voltage, output voltage, and current draw. Verify that the device is properly configured, and the output capacitor value meets the recommended specifications. Also, ensure that the PCB layout and thermal management are adequate to prevent overheating.
Operating the device outside the recommended input voltage range may affect its performance, stability, and reliability. If a different input voltage range is required, consult with Texas Instruments or a qualified engineer to ensure the device can operate safely and efficiently within the desired range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7721602PWR Overview

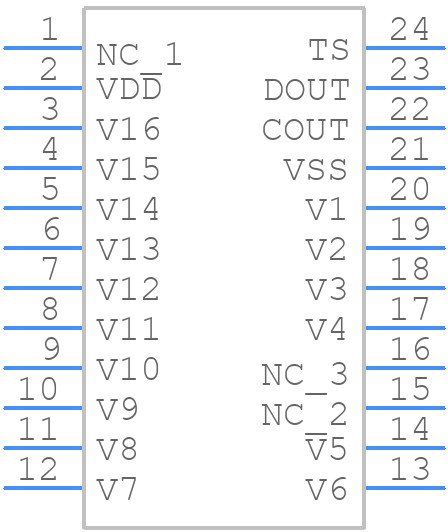

Use the download button to access the BQ7721602PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ772,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
