Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device.
To ensure accurate voltage monitoring, it's crucial to use a high-precision voltage reference, such as the internal reference or an external reference, and to follow the recommended ADC configuration and calibration procedures outlined in the datasheet.
The maximum current rating for the power switches in the BQ77216PWR is 2A per switch, but this can be limited by the package thermal dissipation and the PCB design. It's essential to follow the thermal design guidelines and ensure proper heat sinking to prevent overheating.
The BQ77216PWR is rated for operation up to 125°C, but it's essential to follow the recommended operating conditions and derate the device accordingly. Additionally, ensure that the PCB design and components can withstand the high temperatures.
To configure the BQ77216PWR for low-power mode, set the EN pin low, and ensure that the device is in a low-power state by following the recommended power-down sequence outlined in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7721611PWR Overview

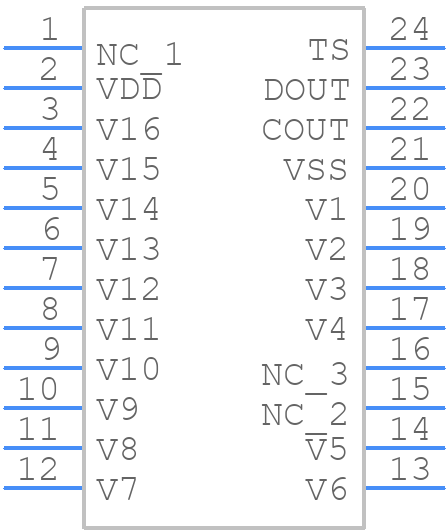

Use the download button to access the BQ7721611PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ772,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
