Texas Instruments provides a recommended PCB layout in the application note SLUA751, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The BQ7791504PWR is a flexible battery monitor that can be configured for various battery chemistries using the TI-provided software development kit (SDK). The SDK includes a configuration tool that allows users to select the battery chemistry and set the corresponding parameters, such as voltage and temperature thresholds.
The accuracy of the fuel gauge measurement depends on various factors, including the battery type, age, and operating conditions. According to the datasheet, the BQ7791504PWR has a typical accuracy of ±1% for the state-of-charge (SOC) measurement. However, this accuracy can be improved by calibrating the device using the TI-provided calibration tool.
Yes, the BQ7791504PWR can be used with a battery pack that has multiple cells in parallel. However, the device can only measure the total voltage and current of the battery pack, and not individual cell voltages or currents. To monitor individual cell voltages, a separate cell voltage monitoring IC may be required.
The BQ7791504PWR has a built-in overcharge protection feature that can be enabled by setting the appropriate registers. When the battery voltage exceeds the programmed overcharge threshold, the device will assert the OVP (overvoltage protection) pin, which can be connected to a charger or power management IC to prevent overcharging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7791504PWR Overview

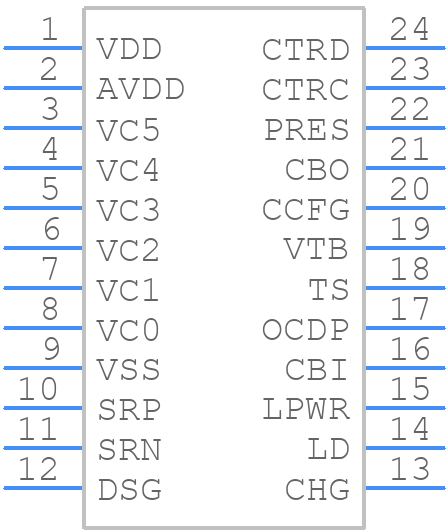

Use the download button to access the BQ7791504PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ779,
or try a keyword search, such as Power Management Circuits
