A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Ensure that the input and output capacitors are placed close to the device, and the high-frequency components are kept away from the low-frequency components.
Consult the datasheet for the specific battery chemistry you're using, and adjust the device's configuration registers accordingly. You may need to adjust the charge voltage, charge current, and termination voltage to match your battery's requirements.
The BQ78350DBTR is rated for operation from -40°C to 85°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
While the BQ78350DBTR is designed to work with specific battery chemistries and capacities, it's possible to use it with other batteries. However, you'll need to consult the battery manufacturer's specifications and adjust the device's configuration accordingly. Be cautious, as using the wrong battery chemistry or capacity may affect the device's performance, safety, or reliability.
Consult the datasheet and application notes for troubleshooting guidelines. Check the device's configuration, PCB layout, and component values. Use a logic analyzer or oscilloscope to monitor the device's signals and identify potential issues. If problems persist, contact Texas Instruments' support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ78350DBTR Overview

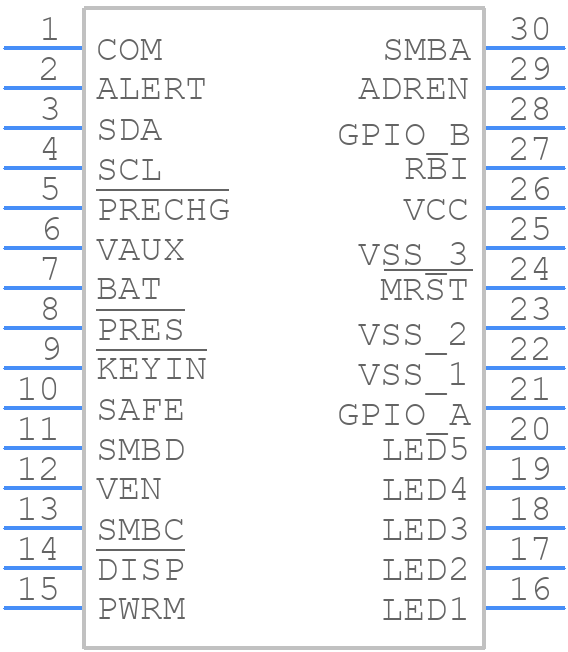

Use the download button to access the BQ78350DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ783,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
