- Part Number BSS84KDW-TP
- Manufacturer MCC
- Pin Count 6
- Part Category MOSFET (P-Channel)
- Package Category SOT23 (6-Pin)
- Footprint Name SOT23 (6-Pin) - SOT-363_2023
- Released Date Jan 24, 2023
- Last Modified Date May 17, 2024 4:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
BSS84KDW-TP Details
-
Manufacturer Part Number:
BSS84KDW-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China, Vietnam
-
ECCN Code:
EAR99
-
Manufacturer:
Micro Commercial Components
-
YTEOL:
6
-
DS Breakdown Voltage-Min:
60 V
-
Drain Current-Max (ID):
0.32 A
-
Drain-source On Resistance-Max:
7 Ω
-
Packing Method:
TR
BSS84KDW-TP Frequently Asked Questions (FAQs)
-
The recommended PCB footprint for the BSS84KDW-TP is a standard SOT23-6 package with a 1.6mm x 1.6mm body size and 0.5mm lead pitch. The datasheet provides a recommended land pattern and soldering guidelines.
-
The BSS84KDW-TP is an ESD-sensitive device and requires proper handling to prevent damage. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube. Avoid touching the device's pins or body.
-
The BSS84KDW-TP is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related characteristics.
-
The BSS84KDW-TP is a commercial-grade device and may not meet the requirements for high-reliability or automotive applications. The user should consult the datasheet and Micro Commercial Components' documentation to determine the device's suitability for their specific application.
-
The BSS84KDW-TP's power dissipation can be calculated using the device's maximum current rating and voltage rating. The user should also consider the device's thermal resistance and the PCB's thermal design to ensure proper thermal management.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
BSS84KDW-TP Overview

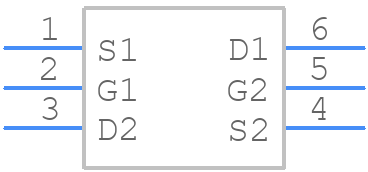

Use the download button to access the BSS84KDW-TP schematic symbol, PCB footprint, and 3D model.
