CC1125RHBT - Texas Instruments

Description: Ultra-High performance Sub-1 GHz Transceiver for Narrowband Systems

Download CC1125RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

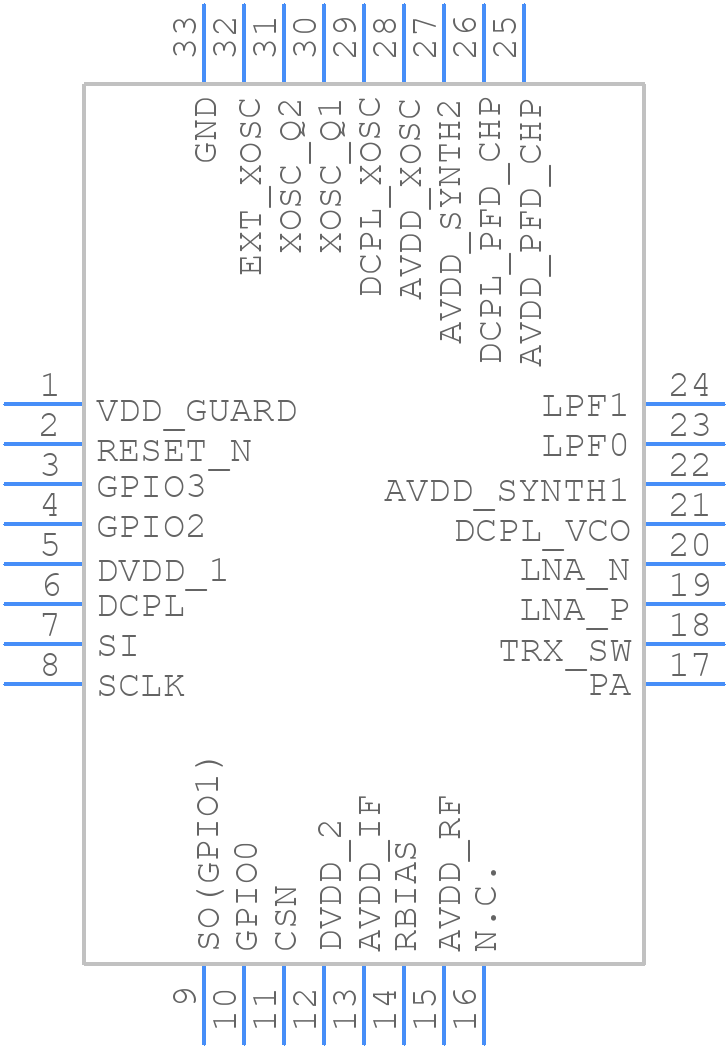

CC1125RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC1125RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)
click to zoom
3D Models
CC1125RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)
click to zoom

CC1125RHBT Details

  • Manufacturer Part Number:

    CC1125RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    200 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

CC1125RHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the CC1125RHBT datasheet, but it's also recommended to follow the guidelines in the TI application note 'CC112x PCB Layout Guidelines' (SWRA419) for optimal performance.
  • TI provides a range of application notes and design guides that can help optimize the CC1125RHBT's performance for specific applications, such as wireless sensor networks or industrial automation. Consult the TI website for relevant resources.
  • The maximum transmission power of the CC1125RHBT is +14 dBm, but this can be adjusted using the device's programmable output power feature.
  • Frequency hopping can be implemented using the CC1125RHBT's built-in frequency synthesizer and the device's programmable frequency hopping feature. Consult the CC1125RHBT datasheet and application notes for more information.
  • The CC1125RHBT's sensitivity is -121 dBm at 868 MHz and -119 dBm at 915 MHz, and its selectivity is 35 dB at 868 MHz and 33 dB at 915 MHz.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC1125RHBT Overview

Use the download button to access the CC1125RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC112, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
