CC400DBR - Texas Instruments

Description: RF Transceiver UHF Transceiver

Download CC400DBR Model

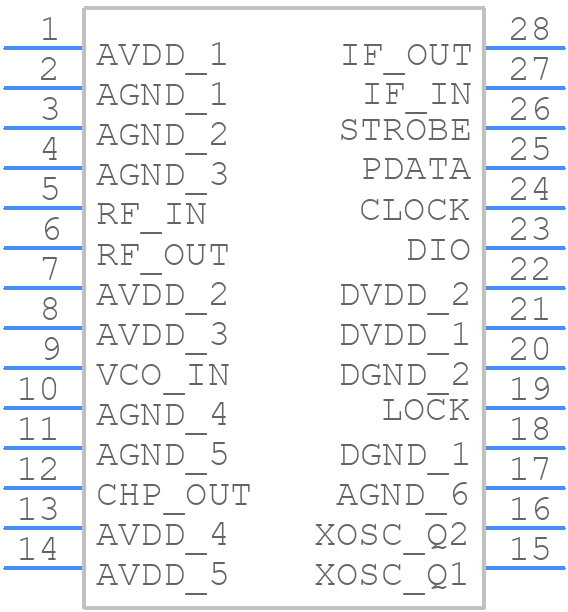

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CC400DBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - ssop-28
click to zoom
3D Models
CC400DBR - Texas Instruments  - 3D model - Small Outline Packages - ssop-28
click to zoom

CC400DBR Details

  • Manufacturer Part Number:

    CC400DBR

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    9 Mbps

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

CC400DBR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane and a separate power plane for the CC400DBR. The device should be placed near the center of the board, and the input and output capacitors should be placed as close to the device as possible.
  • To ensure stability, the CC400DBR requires a minimum ESR (Equivalent Series Resistance) of 0.1 ohms for the output capacitor. Additionally, the output capacitor should be placed close to the device, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • The CC400DBR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The output voltage of the CC400DBR can be calculated using the formula: Vout = (R1 / R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the internal reference voltage (typically 1.25V).
  • The CC400DBR can deliver up to 1A of output current, but it's recommended to operate within the specified output current range of 0.1A to 0.5A for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CC400DBR Overview

Use the download button to access the CC400DBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC400, or try a keyword search, such as Other Telecom ICs
