CC430F5135IRGZT - Texas Instruments

Description: 16-Bit Ultra-Low-Power MCU, 16KB Flash, 2KB RAM, CC1101 Radio, AES-128, 12Bit ADC, USCI

Download CC430F5135IRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

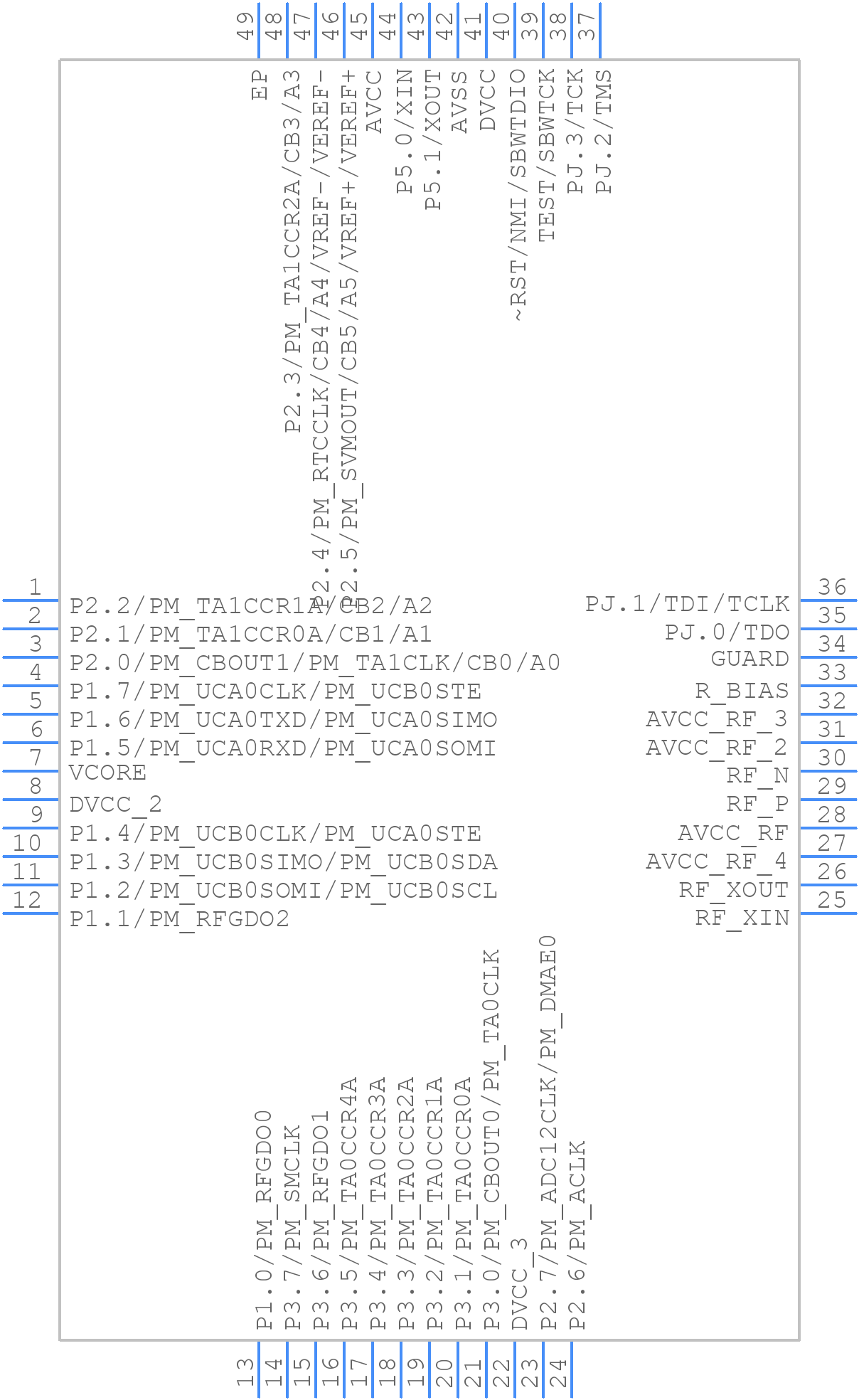

Symbol
CC430F5135IRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CC430F5135IRGZT - Texas Instruments PCB footprint - Other - Other - QFN50P700X700X100-49N
click to zoom
3D Models
CC430F5135IRGZT - Texas Instruments - 3D model - Other - QFN50P700X700X100-49N
click to zoom

CC430F5135IRGZT Details

  • Manufacturer Part Number:

    CC430F5135IRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    500 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    2.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

CC430F5135IRGZT Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CC430F5135IRGZT is 24 MHz.
  • To configure the CC430F5135IRGZT for low power consumption, use the Low Power Mode (LPM) feature, which can be enabled by setting the LPM bits in the Status Register (SR). Additionally, use the Power Management Module (PMM) to control the power modes of the device.
  • The maximum transmission power of the CC430F5135IRGZT is +14 dBm.
  • To implement a wireless communication protocol using the CC430F5135IRGZT, use the device's built-in RF transceiver and microcontroller. The CC430F5135IRGZT supports various wireless protocols such as IEEE 802.15.4, Zigbee, and proprietary protocols. You can use the TI-provided software development kits (SDKs) and example code to implement the protocol of your choice.
  • The CC430F5135IRGZT has 32 KB of flash memory available for program storage.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

CC430F5135IRGZT Overview

Use the download button to access the CC430F5135IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC430, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
