The maximum clock frequency for the CD74HCT40105E is 25 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing specifications and perform thorough testing to ensure reliable operation at the desired clock frequency.
To ensure proper power and decoupling, connect the VCC pin to a stable 5V power supply, and decouple the power supply lines with 0.1 μF ceramic capacitors as close to the device as possible. Additionally, use a 10 μF electrolytic capacitor to filter out any noise or ripple on the power supply lines.
The recommended operating temperature range for the CD74HCT40105E is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a narrower temperature range (e.g., 0°C to 70°C) for optimal performance.
The CD74HCT40105E is a 5V device, but it can be used in a 3.3V system with some limitations. The device's input voltage tolerance is 3.5V to 5.5V, so it can accept 3.3V input signals. However, the output voltage levels may not be compatible with 3.3V logic, and the device's performance may be affected. It's recommended to use a level translator or voltage regulator to ensure proper operation.
The CD74HCT40105E's asynchronous reset input (MR) is active-low, meaning it resets the device when driven low. To handle the reset input, connect it to a pull-up resistor (e.g., 1 kΩ) and drive it low using an active-low reset signal. Ensure that the reset signal is synchronized with the clock signal to avoid metastability issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HCT40105E Overview

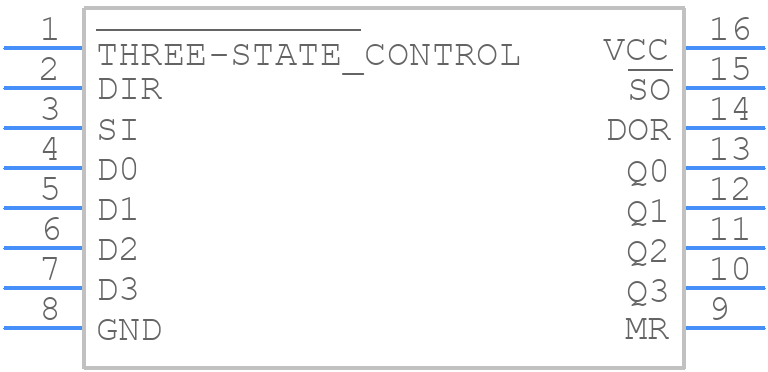

Use the download button to access the CD74HCT40105E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H,
or try a keyword search, such as FIFOs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
