Texas Instruments provides a recommended PCB layout in the CDCE925PWRG4 datasheet, but it's also recommended to follow the general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
The CDCE925PWRG4 can be configured using the TI Clock Design Tool or by using the device's register settings. The tool allows you to select the desired clock frequency, and it generates the necessary register settings. You can also refer to the device's datasheet for more information on register settings.
The maximum input clock frequency that the CDCE925PWRG4 can handle is 250 MHz. However, the device can also be used with input frequencies up to 350 MHz with some limitations on the output frequency range.
Yes, the CDCE925PWRG4 can be used in a system with multiple power domains. The device has separate power supply pins for the core and output stages, allowing it to operate with different power domains. However, it's essential to ensure that the power supplies are properly decoupled and filtered to prevent noise and interference.
To troubleshoot issues with the CDCE925PWRG4, start by verifying the device's configuration and register settings. Check the input clock signal quality, power supply noise, and PCB layout. Use oscilloscopes or signal analyzers to measure the output clock signal quality and jitter. Texas Instruments also provides application notes and technical support resources to help with troubleshooting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCE925PWRG4 Overview

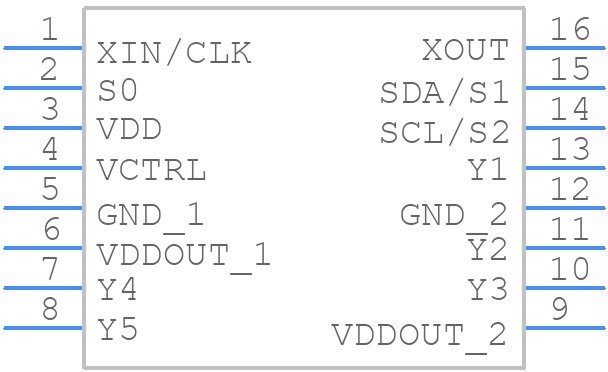

Use the download button to access the CDCE925PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE9,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
