CDCVF857DGG - Texas Instruments

Description: 2.5 V Phase Lock Loop DDR Clock Driver

Download CDCVF857DGG Model

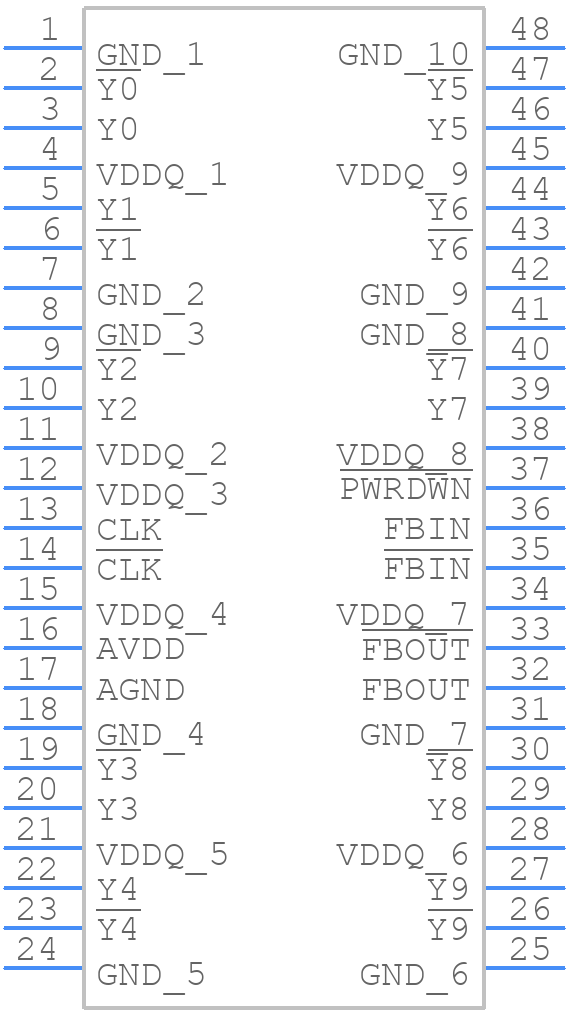

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCVF857DGG - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGG (R-PDSO-G48)
click to zoom
3D Models
CDCVF857DGG - Texas Instruments  - 3D model - Small Outline Packages - DGG (R-PDSO-G48)
click to zoom

CDCVF857DGG Details

  • Manufacturer Part Number:

    CDCVF857DGG

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-48

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    857

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Load Capacitance (CL):

    14 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    10 mA

  • Prop. Delay@Nom-Sup:

    3.5 ns

  • Propagation Delay (tpd):

    3.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.04 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

  • fmax-Min:

    220 MHz

CDCVF857DGG Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper initialization and prevents potential latch-up conditions.
  • The CDCVF857DGG requires a 50-ohm termination resistor to VCC or VDD for each output signal. This ensures signal integrity and prevents reflections.
  • The CDCVF857DGG supports clock frequencies up to 250 MHz. However, the actual frequency limit may depend on the specific application, PCB layout, and signal quality.
  • Yes, the CDCVF857DGG is compatible with 3.3V systems. However, ensure that the input clock signal and output loads are compatible with the 3.3V voltage level.
  • The OE pin is active-low, meaning it should be pulled low to enable the output signals. When OE is high, the outputs are in a high-impedance state.
