CLC020BCQ/NOPB - Texas Instruments

Description: SMPTE 259M Digital Video Serializer with Integrated Cable Driver

Download CLC020BCQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

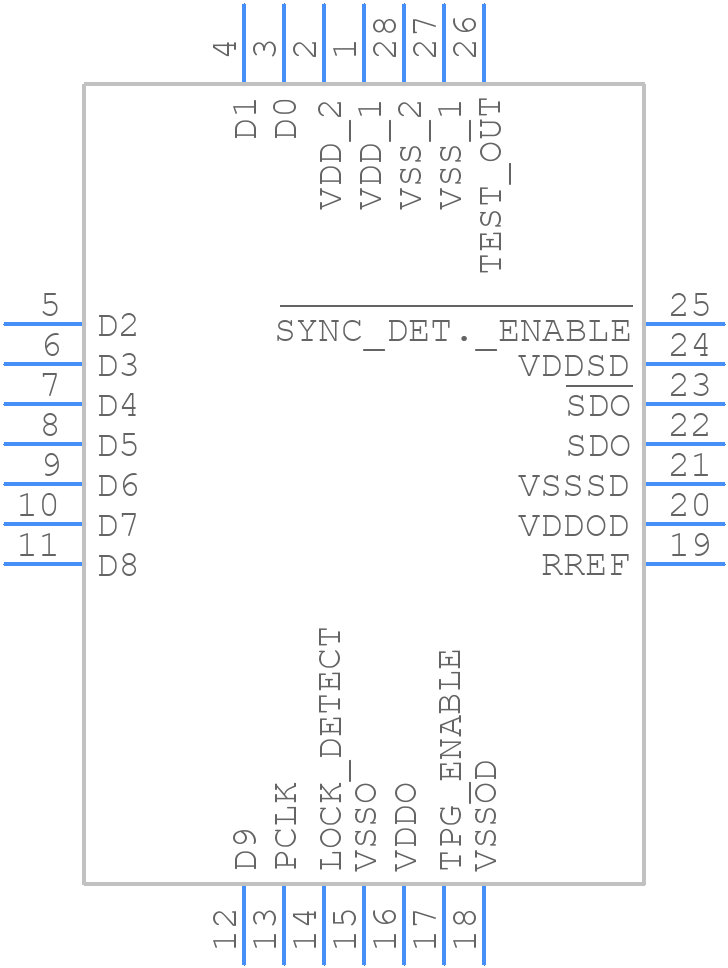

Symbol
CLC020BCQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CLC020BCQ/NOPB - Texas Instruments PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - FN0028A
click to zoom
3D Models
CLC020BCQ/NOPB - Texas Instruments - 3D model - Plastic Leaded Chip Carrier - FN0028A
click to zoom

CLC020BCQ/NOPB Details

  • Manufacturer Part Number:

    CLC020BCQ/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Pin Count:

    28

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e3

  • Length:

    11.43 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max:

    60 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.43 mm

CLC020BCQ/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible to minimize noise and signal degradation.
  • The CLC020BCQ/NOPB requires a dual power supply, with VCC connected to a positive voltage (typically 5V) and VEE connected to a negative voltage (typically -5V). The input common-mode voltage should be set to the midpoint of the power supply voltage range.
  • The CLC020BCQ/NOPB can drive up to 100pF of capacitive load, but it's recommended to keep the load capacitance as low as possible to ensure stability and minimize ringing.
  • The CLC020BCQ/NOPB has built-in ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge.
  • The CLC020BCQ/NOPB has a thermal derating of 5.9mW/°C above 25°C, which means that the maximum power dissipation decreases as the temperature increases.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CLC020BCQ/NOPB Overview

Use the download button to access the CLC020BCQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CLC02, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
