CSD88584Q5DC - Texas Instruments

Description: 40V, Nch synchronous buck NexFET MOSFET™, SON5x6 dualCool PowerBlock, 50A

Download CSD88584Q5DC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

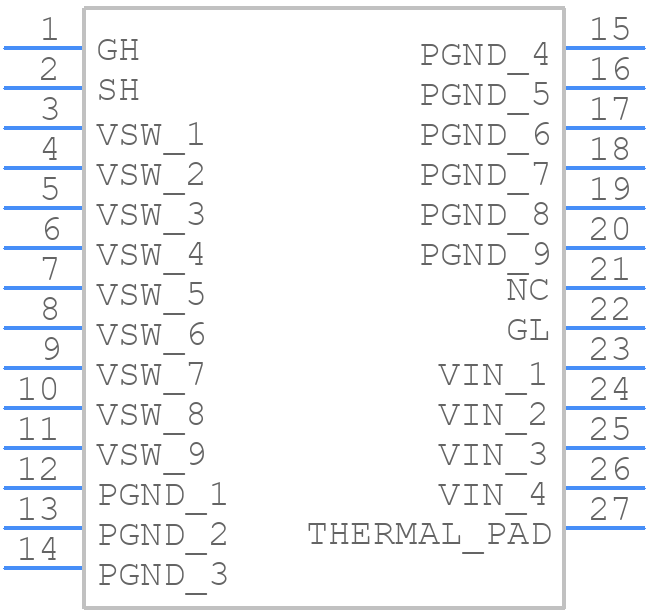

CSD88584Q5DC - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CSD88584Q5DC - Texas Instruments PCB footprint - Other - Other - Q5DC_DMM
click to zoom
3D Models
CSD88584Q5DC - Texas Instruments - 3D model - Other - Q5DC_DMM
click to zoom

CSD88584Q5DC Details

  • Manufacturer Part Number:

    CSD88584Q5DC

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Date Of Intro:

    2017-06-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-N22

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    50 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

CSD88584Q5DC Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 2 oz copper thickness and a thermal relief pattern under the device.
  • Ensure the input voltage is within the recommended range (10-14V) and the output voltage is set to the desired level (e.g., 5V or 3.3V). Verify the bias resistors are correctly sized and the input capacitor is sufficient for filtering.
  • The maximum allowed current for the output stage is 5A. However, it's recommended to derate the current to 4A for optimal reliability and thermal performance.
  • Implement overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients. Use a voltage supervisor or a dedicated OVP/UVP IC for added protection.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input filtering. Ensure the capacitor is placed close to the device and has a low equivalent series resistance (ESR).
