D2516ECMDXGJD-U - Kingston Technology

Description: DRAM Chip DDR3L SDRAM 4Gbit 256Mx16 1.35V 96-Pin FBGA

Download D2516ECMDXGJD-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

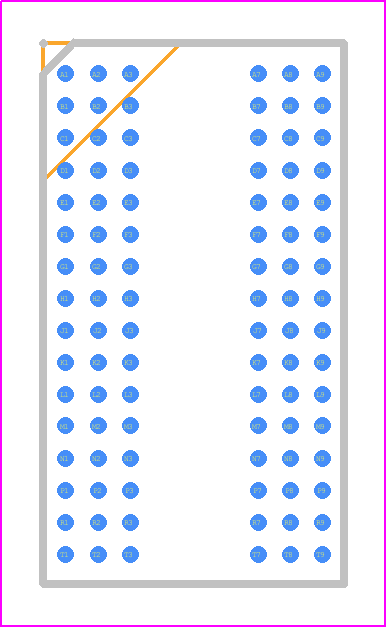

D2516ECMDXGJD-U - Kingston Technology PCB footprint - BGA - BGA - 96-ball FBGA
click to zoom
3D Models
D2516ECMDXGJD-U - Kingston Technology  - 3D model - BGA - 96-ball FBGA
click to zoom

D2516ECMDXGJD-U Details

  • Manufacturer Part Number:

    D2516ECMDXGJD-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-96

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Kingston Technology Company

  • YTEOL:

    4

  • Access Mode:

    MULTI BANK PAGE BURST

  • Access Time-Max:

    20 ns

  • Clock Frequency-Max (fCLK):

    934 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    4,8

  • JESD-30 Code:

    R-PBGA-B96

  • Length:

    13.5 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    DDR3L DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    96

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    95 °C

  • Organization:

    256MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA96,9X16,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Refresh Cycles:

    8192

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    4,8

  • Standby Current-Max:

    0.028 A

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Max (Vsup):

    1.45 V

  • Supply Voltage-Min (Vsup):

    1.283 V

  • Supply Voltage-Nom (Vsup):

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7.5 mm

D2516ECMDXGJD-U Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the D2516ECMDXGJD-U is 0°C to 85°C, with a storage temperature range of -40°C to 100°C.
  • To ensure data integrity, it's recommended to use a power-fail interrupt (PFI) signal to detect power failures and initiate a shutdown sequence. Additionally, implementing a capacitor or supercapacitor on the power rail can help maintain power to the module during a power failure.
  • The D2516ECMDXGJD-U is designed to support up to 500 insertion cycles, making it suitable for applications that require frequent module removal and reinsertion.
  • The D2516ECMDXGJD-U is designed to operate at a voltage range of 1.35V to 1.45V, so it's not recommended to use it with a 1.2V power supply. Using a lower voltage may affect the module's performance and reliability.
  • The typical power consumption of the D2516ECMDXGJD-U is around 2.5W during idle mode and up to 4.5W during active mode, depending on the specific usage scenario and operating frequency.
