Texas Instruments provides a layout and routing guide in the DAC43508RTER datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops.
The DAC43508RTER has an internal calibration and trimming mechanism, but it's recommended to follow the calibration procedure outlined in the datasheet, which involves writing specific values to the device's registers. Additionally, it's recommended to use the TI-provided software tools, such as the DAC43508RTER Evaluation Module, to simplify the calibration process.
The maximum output current of the DAC43508RTER is 25 mA per channel. To ensure it's not exceeded, it's recommended to use a current-limiting resistor in series with the output, and to carefully calculate the output current requirements based on the load impedance and voltage range.
The DAC43508RTER has a SYNC pin that allows multiple devices to be synchronized. To synchronize multiple devices, connect the SYNC pins together and use a common clock source. Additionally, ensure that the devices are configured to use the same clock frequency and phase.
The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the clock signal. The recommended power-down sequence is to remove the clock signal, followed by DVDD, and then AVDD.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC43508RTER Overview

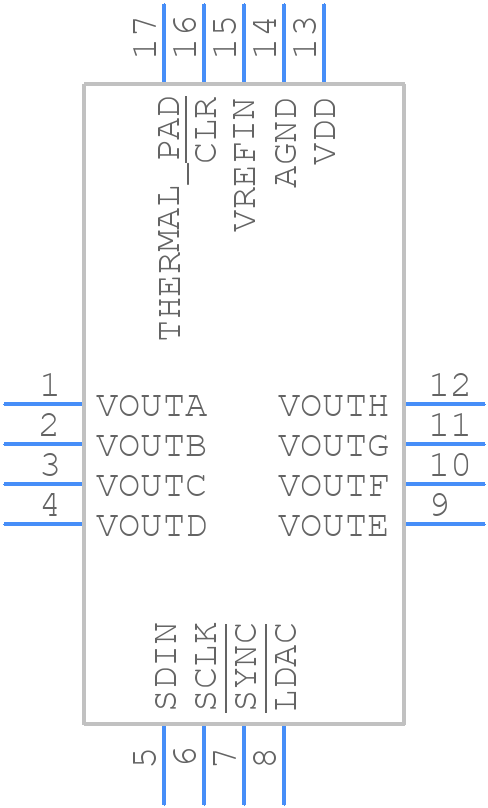

Use the download button to access the DAC43508RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC43,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
