DC08-11SRWA - Kingbright

Description: LED Displays & Accessories Dual Red 640nm Common Cathode

Download DC08-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

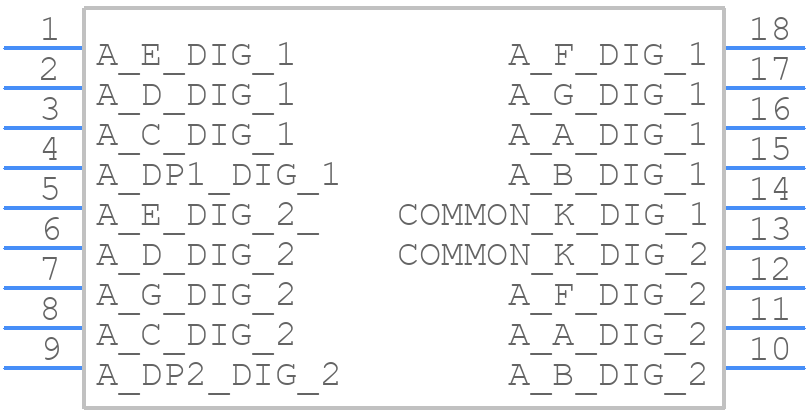

DC08-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

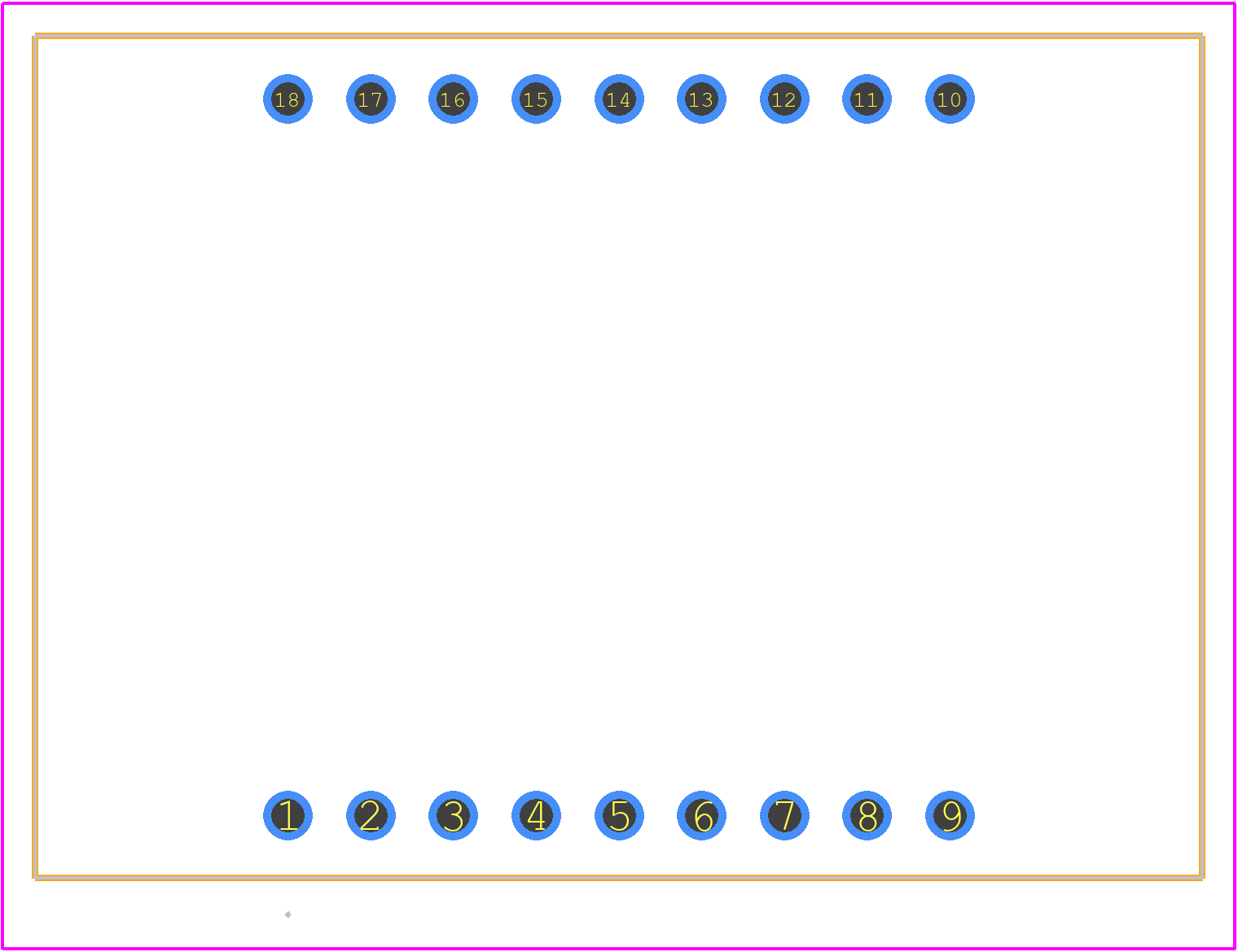

DC08-11SRWA - Kingbright PCB footprint - Other - Other - DC08-11SRWA-2
click to zoom
3D Models
DC08-11SRWA - Kingbright - 3D model - Other - DC08-11SRWA-2
click to zoom

DC08-11SRWA Details

  • Manufacturer Part Number:

    DC08-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

DC08-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for DC08-11SRWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, DC08-11SRWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for DC08-11SRWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, DC08-11SRWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to prevent damage to the LED.
  • The typical viewing angle for DC08-11SRWA is 120°, but this can vary depending on the specific application and optical design.
